M50-3650542R

Headers, Male Pins Overview

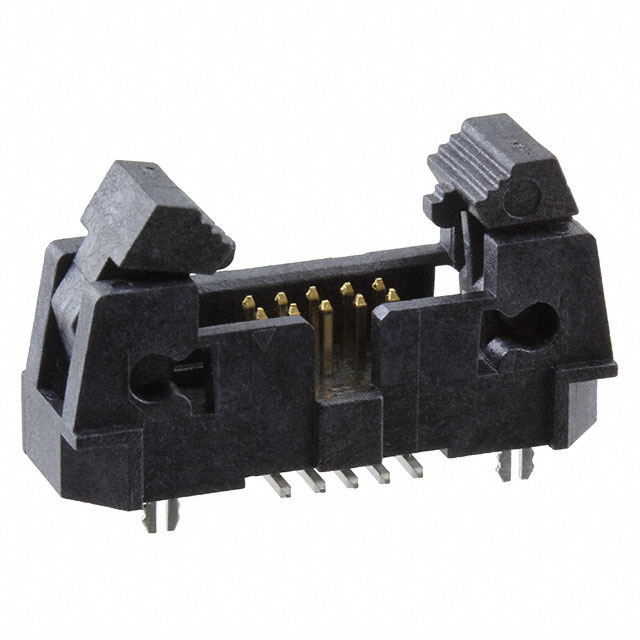

The Harwin M50-3650542R is a male pin header from the ARCHER M50 series, designed for surface mount technology (SMT) applications. It features a 10-position configuration with a 1.27 mm pitch and two rows. The connector utilizes IDC vertical latch mechanisms for secure cable attachment. Electrical specifications include a current rating of 1.75 A per contact and an insulation resistance of 5 GOhms. The operating temperature range spans from -55°C to +125°C. Constructed with brass contacts gold-plated for reliability and LCP housing, it ensures stable performance in demanding electronic environments.

Headers, Male Pins Feature Summary

• Vertical SMT latch header design for automated assembly
• IDC termination mechanism for rapid cable connection
• Gold-plated brass contacts for corrosion resistance
• LCP housing material for high thermal stability

Headers, Male Pins Applications

• High-density board-to-cable interconnects
• Automotive electronics modules
• Industrial control systems
• Consumer device internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' indicates reel packaging when ordering. Confirm that the 1.27 mm pitch matches the mating cable harness requirements. Ensure the SMT footprint aligns with the PCB layout guidelines provided in the official datasheet. Check RoHS compliance status if restricted substances are a project constraint. Validate the 1.75 A current rating against the actual circuit load to prevent overheating during operation.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertically oriented header is required for space-constrained designs. The IDC latch feature simplifies assembly compared to traditional crimping methods. Consider the 1.27 mm pitch density for high-pin-count applications within limited board areas. The gold plating offers superior conductivity and durability for frequent mating cycles. Evaluate the thermal range suitability for the intended operational environment.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 series, known for its compact form factor and reliable latching mechanism. The series is widely used in industries requiring robust wire-to-board connections. The M50-3650542R specifically addresses needs for vertical mounting and surface mount compatibility. It complements other connectors in the ARCHER family by offering standardized dimensions and electrical characteristics.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Cross-referencing requires matching pitch, row count, and termination type. Verify mechanical fit and electrical ratings before considering alternative brands. Consult Harwin technical support for validated equivalents if supply chain issues arise.

Headers, Male Pins FAQ

What is the mating force characteristic of the IDC latch?

The IDC latch provides a secure mechanical connection with audible feedback upon engagement, ensuring proper seating without excessive force.

Is the connector compatible with standard ribbon cables?

Yes, the IDC mechanism is designed for flat ribbon cables with 1.27 mm spacing, allowing for quick and tool-free installation.
