M50-3930642

$0.36

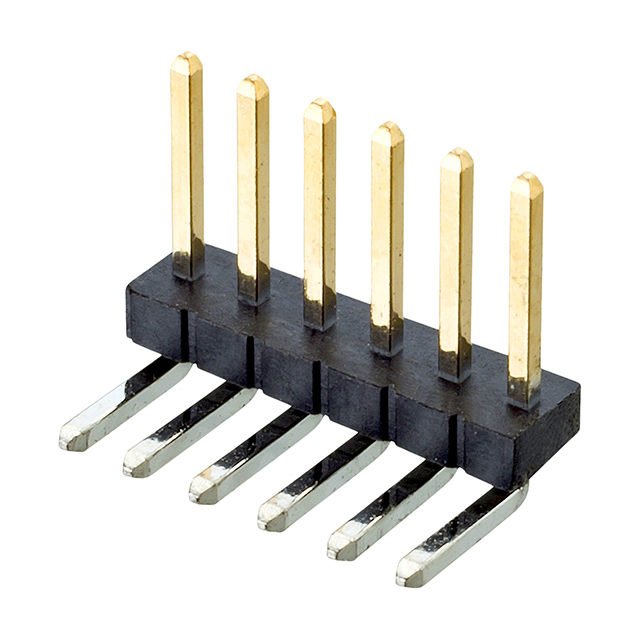

Description：CONN HEADER R/A 6POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Box

SKU:2f19cd21e192 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3930642 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 6POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3930642

Description：CONN HEADER R/A 6POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Box
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：6
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.157" (4.00mm)
Contact Length - Post：0.094" (2.40mm)
Overall Contact Length：-
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Polyamide (PA9T), Nylon 9T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-3930642

M50-3930642

Headers, Male Pins Overview

The M50-3930642 is a male pin header from the Harwin Archer M50 series, featuring 6 positions in a single row with a 1.27 mm pitch. Designed for through-hole mounting, it utilizes gold-plated phosphor bronze contacts housed in black thermoplastic insulation. The connector supports board-to-board and wire-to-board applications, rated for 1 A current and 250 V voltage. It operates within a temperature range of -55°C to +105°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance.
Thermoplastic housing provides structural integrity and UL 94 V-0 flame retardancy.
Through-hole termination facilitates secure mechanical attachment to printed circuit boards.

Headers, Male Pins Applications

Board-to-board interconnections
Wire-to-board connections
General electronic equipment assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm contact configuration and orientation. Ensure compatibility with mating connectors regarding pitch and row count. Check for required certifications or environmental compliance specifications relevant to the target application before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row through-hole header is required for dense PCB layouts. The 1.27 mm pitch suits applications needing high I/O density. Consider the operating temperature range and current rating to ensure performance stability under expected load conditions.

Headers, Male Pins Part Context

This component belongs to the Archer M50 series, characterized by its compact form factor and robust construction. The series offers various configurations to support diverse connectivity needs in modern electronics, emphasizing reliability and space efficiency in design.
