M50-4300845

Headers, Receptacles, Female Sockets Overview

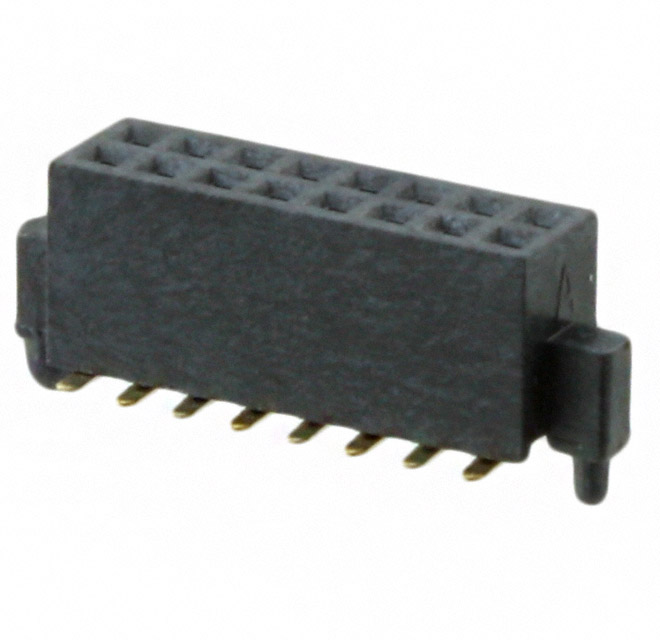

The Harwin M50-4300845 is a 16-position, double-row female header connector from the Archer M50 series. It features a 1.27 mm (0.05 in) pitch and is designed for surface mount technology (SMT) installation. The contacts are manufactured from phosphor bronze with gold plating to ensure reliable conductivity. Rated for 1 kV voltage and 12 A current, this straight connector operates within a temperature range of -40°C to +105°C. The housing utilizes liquid crystal polymer (LCP) material for high thermal stability and mechanical strength.

Headers, Receptacles, Female Sockets Feature Summary

• High-voltage insulation capability up to 1 kV for demanding applications
• Gold-plated phosphor bronze contacts for enhanced corrosion resistance
• Liquid crystal polymer housing provides superior thermal performance

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections requiring high voltage isolation
• Industrial control systems operating in extreme temperatures
• Medical equipment with strict reliability standards

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific contact count and row configuration against the datasheet before ordering. Confirm that the surface mount footprint matches the target PCB design. Ensure the voltage rating aligns with the system requirements. Check for RoHS compliance documentation if required by project specifications.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high voltage isolation is critical alongside compact board-to-board connectivity. The 1.27 mm pitch allows for dense routing while maintaining safety margins. Consider the LCP housing material for environments exceeding standard thermoplastic limits. Verify current carrying capacity requirements against the 12 A rating.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer M50 series, which specializes in high-performance connectors. The series offers various configurations including IDC and through-hole options. The M50-4300845 specifically addresses the need for SMT assembly with robust electrical characteristics. It complements other M50 series components for complete system integration.

Headers, Receptacles, Female Sockets Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific variant. Cross-reference with other M50 series headers for mechanical compatibility. Verify pinout and voltage ratings before considering alternative manufacturers.
