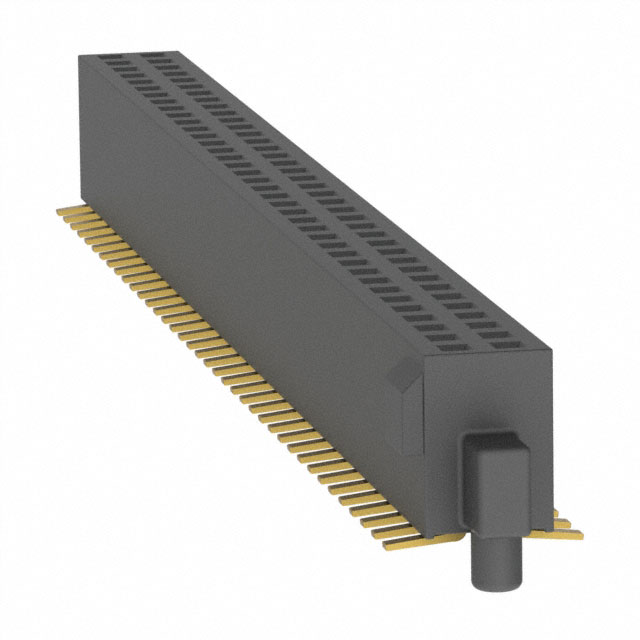

M50-4303845

M50-4303845 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 76POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-4303845

• Description：CONN RCPT 76POS 0.05 GOLD SMD
• Series：Archer M50
• Mfr：Harwin Inc.
• Package：Tube
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：76
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：-
• Insulation Color：Black
• Insulation Height：0.181" (4.60mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：6mm, 6.5mm
• Ingress Protection：-
• Features：Board Guide
• Current Rating (Amps)：1A
• Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-4303845
