M50-4304145

Headers, Receptacles, Female Sockets Overview

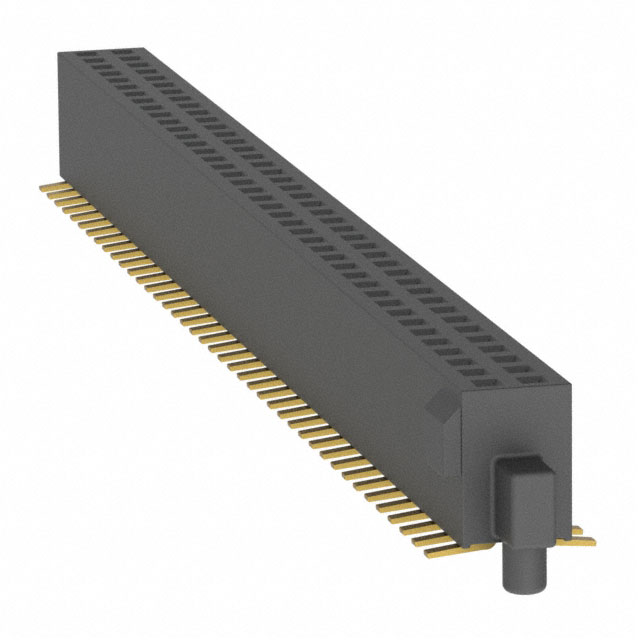

The Harwin M50-4304145 is a surface-mount board-to-board receptacle connector from the Archer M50 series. It features a dual-row configuration with 82 positions and a 1.27 mm (0.05 inch) pin spacing. The contacts are gold-plated for reliable signal transmission. Designed for high-density applications, this component utilizes a vertical orientation and SMT installation method. It is suitable for environments requiring robust interconnect solutions within compact form factors.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row architecture providing high I/O density in a compact footprint
• Gold-plated contacts ensure consistent electrical performance and corrosion resistance
• Surface-mount technology enables automated assembly and secure PCB attachment

Headers, Receptacles, Female Sockets Applications

• High-density electronic assemblies
• Industrial control systems
• Telecommunications equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status and lifecycle stage. Ensure that the selected variant matches the required contact count and pitch specifications for the target application. Cross-reference datasheets to validate compliance with relevant environmental standards and mounting requirements before finalizing procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a high-pin-count, dual-row interface is required for space-constrained designs. Consider the 1.27 mm pitch as a balance between density and manufacturability. Evaluate the surface-mount profile against available board real estate and mating height constraints. Confirm compatibility with mating header components within the same M50 series family to ensure proper mechanical engagement.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Archer M50 series, which focuses on fine-pitch connectivity solutions. The series offers various configurations including headers, receptacles, and cable assemblies. The M50-4304145 specifically addresses the need for robust, high-reliability connections in modern electronics where space efficiency and signal integrity are critical design parameters.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Harwin substitution guides for verified alternative part numbers. Generic equivalents may not match the precise mechanical tolerances or material specifications of the original component.
