M50-4304245

Headers, Receptacles, Female Sockets Overview

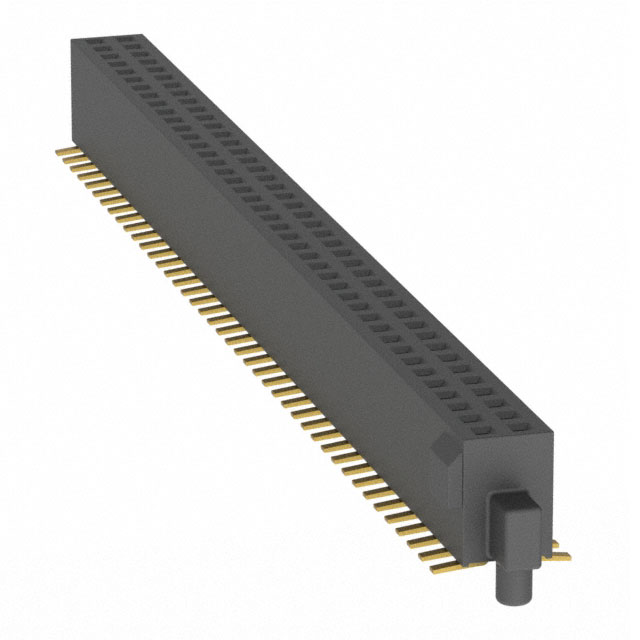

The Harwin M50-4304245 is a 48-position double-row board-to-board receptacle from the Archer M50 series. It features a 1.27 mm pitch and 1.27 mm row spacing, designed for surface mount (SMT) installation with gold-plated contacts. The connector has a black housing and measures 4.60 mm in height. It operates within a temperature range of -40°C to +105°C and complies with RoHS standards.

Headers, Receptacles, Female Sockets Feature Summary

• Double-row edge-type architecture with integrated guide rails for precise alignment
• SMT mounting configuration with gold-plated phosphor bronze contacts
• High-density design utilizing 1.27 mm pitch and row spacing

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections in compact electronic assemblies
• High-density signal routing in industrial equipment
• Data center hardware requiring reliable SMT connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact contact plating thickness and material composition. Ensure compatibility with mating header specifications regarding guide rail integration and mechanical retention requirements before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density, double-row SMT solution is required. The 1.27 mm pitch allows for significant pin count in limited space. Verify that the application environment supports the specified operating temperature range and that the PCB layout accommodates the 4.60 mm profile height.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer M50 series, which provides high-reliability interconnect solutions. The series is characterized by its robust construction and suitability for demanding environments. The M50-4304245 specifically addresses needs for dense, surface-mounted board-to-board connections.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available. Direct replacement requires verifying identical mechanical dimensions, electrical ratings, and mounting configurations with alternative manufacturers.
