M50-4304645

Headers, Receptacles, Female Sockets Overview

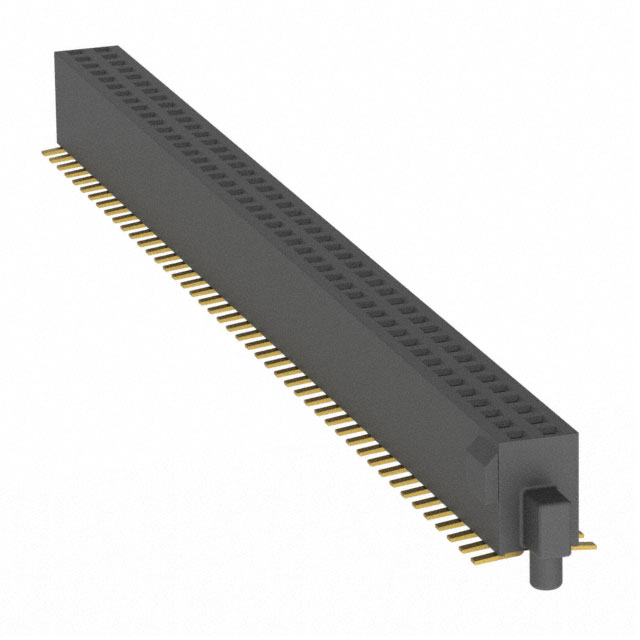

The M50-4304645 is a surface-mount receptacle connector from the Harwin Archer M50 series. It features a dual-row configuration with 92 positions and a 1.27mm (0.05 inch) pin spacing. The contacts are gold-plated for reliable signal transmission. Designed for board-to-board applications, this component utilizes SMT technology for automated assembly. It is classified as an obsolete part number no longer manufactured by Harwin Inc.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row receptacle design for high-density interconnects
• Gold-plated contacts to ensure conductivity and corrosion resistance
• Surface mount termination for PCB integration

Headers, Receptacles, Female Sockets Applications

• Board-to-board connections in electronic assemblies
• High-density signal routing on printed circuit boards
• Obsolete system maintenance requiring replacement parts

Headers, Receptacles, Female Sockets Procurement Notes

This component is officially marked as obsolete and discontinued by the manufacturer. Procurement must rely on third-party distributors or surplus stock providers. Verify authenticity carefully due to potential counterfeits of end-of-life parts. Confirm lot dates and physical condition before acquisition. No new production units are available directly from Harwin Inc.

Headers, Receptacles, Female Sockets Selection Notes

Engineers should identify active equivalents within the same M50 series family that match the 92-position count and 1.27mm pitch. Consider vertical or right-angle variants if form factor changes are acceptable. Evaluate current availability and lead times for substitute components to ensure supply chain continuity for ongoing projects.

Headers, Receptacles, Female Sockets Part Context

Part of the Archer M50 series, known for compact board-to-board solutions. This specific model represents a high-pin-count variant designed for dense packaging requirements. The series generally supports standard surface mount processes. Obsolete status indicates it belongs to legacy product lines no longer supported by active manufacturing schedules.

Headers, Receptacles, Female Sockets Replacement Considerations

M50-4304645 is obsolete. Potential substitutes include other 92-position M50 series receptacles such as M50-4302445 (48 pos) or similar high-count variants. Verify exact pin count and row configuration when selecting alternatives. Cross-reference mechanical dimensions to ensure compatibility with existing PCB footprints.
