M50-4700545

Headers, Male Pins Overview

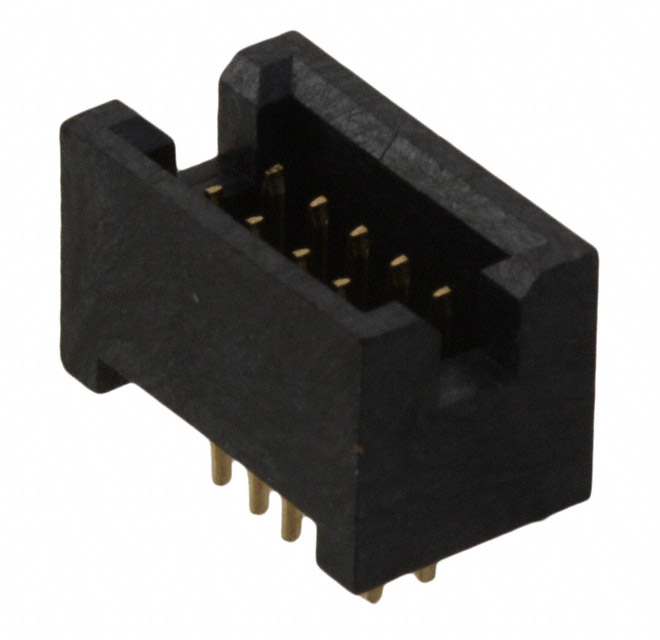

The M50-4700545 is a Harwin ARCHER series header connector featuring a 1.27 mm pitch and 10 positions arranged in a double in-line (DIL) configuration. It utilizes straight through-hole mounting with gold-plated phosphor bronze contacts housed in black polyamide insulation. Rated for 1 A current and 150 V voltage, this shrouded male pin header operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Shrouded design ensures precise alignment during mating
• Gold contact plating provides reliable signal transmission
• Polyamide housing meets UL 94 V-0 flammability standards

Headers, Male Pins Applications

• Board-to-board interconnections
• General electronic equipment assembly
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm exact contact length and housing variations. Ensure compatibility with mating sockets from the same ARCHER M50 series. Confirm RoHS compliance status directly with the manufacturer or authorized distributors prior to procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring a 1.27 mm pitch DIL header with shrouded protection. The straight through-hole termination suits standard PCB manufacturing processes. Consider the 1 A current rating and thermal limits when designing circuit layouts to ensure long-term reliability under operating conditions.

Headers, Male Pins Part Context

This part belongs to the Harwin ARCHER M50 series, designed for high-density PCB connections. The series offers various configurations including IDC cables and surface mount options. The M50-4700545 specifically addresses needs for vertical male headers with robust mechanical stability and consistent electrical performance.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Harwin M50 series headers with identical 1.27 mm pitch and 10-position DIL layout. Verify that alternative parts maintain the same shrouded structure and through-hole termination style to ensure mechanical fit.
