M50-4702345

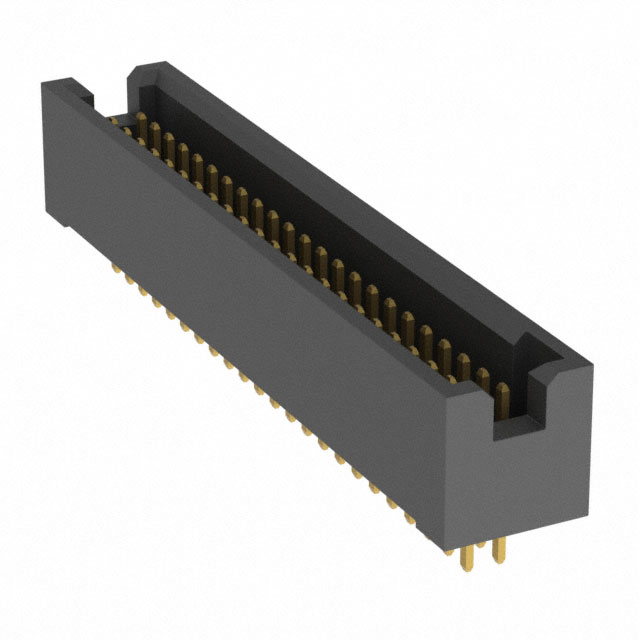

Description：CONN HEADER VERT 46POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:c6e5bb0ff08e Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4702345 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 46POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4702345

Description：CONN HEADER VERT 46POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：46
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4702345

M50-4702345

Headers, Male Pins Overview

The Harwin M50-4702345 is a rectangular connector header from the Archer M50 series, designed for through-hole board-to-board applications. It features 46 positions with a 1.27 mm (0.050 inch) pitch. The component utilizes gold-plated contacts and is housed in black polybutylene terephthalate (PBT). Rated for 1 A current, it operates within a temperature range of -40°C to +105°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

Gold-plated contacts ensure reliable electrical performance
Through-hole mounting provides secure PCB attachment
Black PBT housing offers thermal stability

Headers, Male Pins Applications

Board-to-board interconnects
High-density electronic assemblies
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Harwin documentation to confirm pin count and pitch specifications. Ensure compatibility with mating connectors within the same series. Check for RoHS compliance status and verify that the supplier provides valid certificates of conformity before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust through-hole connections with high reliability. Consider the 1.27 mm pitch for space-constrained designs. Evaluate the operating temperature range and current rating against system requirements. Confirm mechanical fit and mating interface compatibility with existing hardware.

Headers, Male Pins Part Context

This connector belongs to the Archer M50 series, known for compact design and durability. It serves as a critical link in modern electronics, offering stable connectivity in demanding environments. The series supports various configurations to meet diverse industry needs.
