M50-4802545

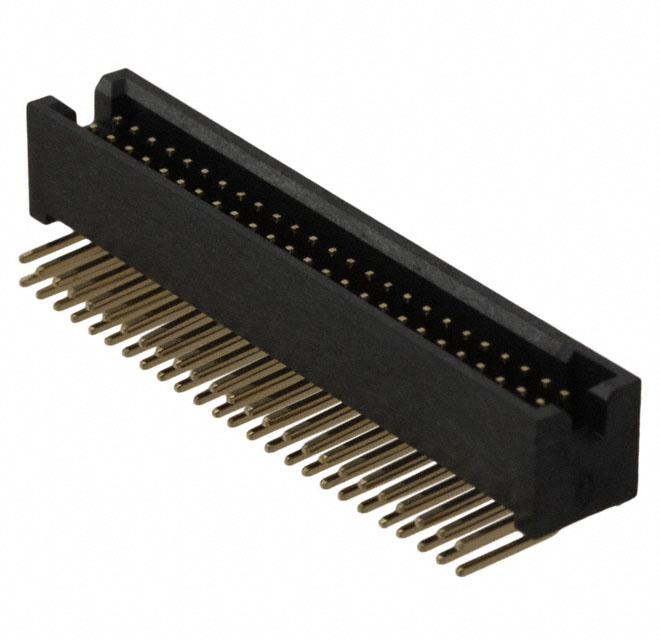

Description：CONN HEADER R/A 50POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:e5fe0939e86a Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4802545 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER R/A 50POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4802545

Description：CONN HEADER R/A 50POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：50
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.083" (2.11mm)
Overall Contact Length：-
Insulation Height：0.222" (5.65mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4802545

M50-4802545

Headers, Male Pins Overview

The Harwin M50-4802545 is a shrouded, right-angle male pin header belonging to the ARCHER M50 series. It features a 1.27 mm (0.05 in) pitch and a 25+25 position configuration arranged in two rows. The connector utilizes gold-plated phosphor bronze contacts with a current rating of 1 A and a voltage rating of 300 V. Designed for surface mount technology (SMD/SMT), it employs solder pin terminals and includes a black liquid crystal polymer (LCP) housing rated UL 94 V-0. The unit operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Right-angle surface mount design for compact board integration
Shrouded housing structure providing contact protection and polarization
Gold-plated contacts ensuring reliable signal transmission

Headers, Male Pins Applications

Industrial control systems requiring secure interconnections
Medical electronic equipment demanding high reliability
Metering and measurement devices needing stable data connections

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact plating thickness and material specifications. Ensure compatibility with automated SMD assembly processes due to the right-angle form factor. Cross-reference the 50-position requirement with mating socket availability to prevent interface mismatches during production.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for dense PCB layouts. The 1.27 mm pitch offers a balance between pin density and spacing ease. Consider the shrouded design if mechanical protection for pins is necessary during handling or mating cycles compared to open headers.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 family, which provides robust rectangular interconnect solutions. The series supports various configurations including jumper sockets and shunts. It is engineered for applications where space constraints and connection stability are critical priorities.
