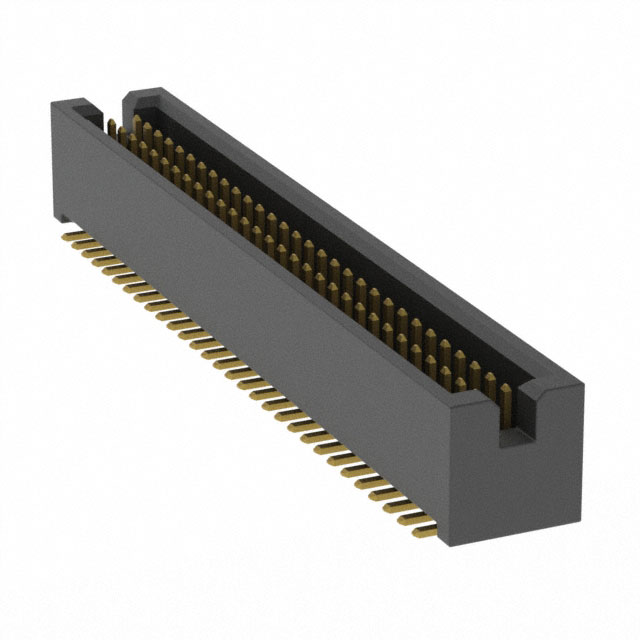

M50-4903045

Description：CONN HEADER SMD 60POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:e4d3a2c6a5f7 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4903045 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 60POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4903045

Description：CONN HEADER SMD 60POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：60
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4903045

M50-4903045

Headers, Male Pins Overview

The Harwin M50-4903045 is a surface mount header connector belonging to the ARCHER M50 series. It features a dual in-line configuration with 60 positions arranged in two rows. The component utilizes a 1.27 mm (0.05 inch) pitch and operates at a rated voltage of 300 V and current of 1 A. Constructed with brass contacts plated in gold, it offers vertical mounting with a shrouded design. The housing is made of black liquid crystal polymer (LCP) meeting UL 94 V-0 flammability standards. This specific part number is currently obsolete.

Headers, Male Pins Feature Summary

Dual row surface mount architecture for high-density board-to-board interconnects
Shrouded housing design providing four-wall protection for mating sockets
Gold-plated brass contacts ensuring reliable electrical conductivity
Vertical orientation compatible with standard SMT assembly processes

Headers, Male Pins Applications

Data center infrastructure connections
Power distribution unit interfaces
High-density electronic module interconnects

Headers, Male Pins Procurement Notes

This component is officially discontinued by the manufacturer. Verify end-of-life status through official Harwin notifications before integration. Sourcing new units from distributors may result in limited availability or non-genuine stock. Ensure compliance with RoHS directives if required for the application environment.

Headers, Male Pins Selection Notes

Designers should evaluate alternative active parts within the ARCHER M50 series due to the obsolescence of this specific variant. Consider pin count variations such as M50-4912545 for similar specifications. Validate mechanical footprint compatibility and thermal requirements during the replacement selection process.

Headers, Male Pins Part Context

The M50-4903045 belongs to the ARCHER M50 family, characterized by 1.27 mm pitch surface mount headers. These connectors are engineered for robust performance in demanding environments. The series supports various position counts while maintaining consistent mechanical and electrical characteristics across the product line.
