M52-050000P1245

Headers, Male Pins Overview

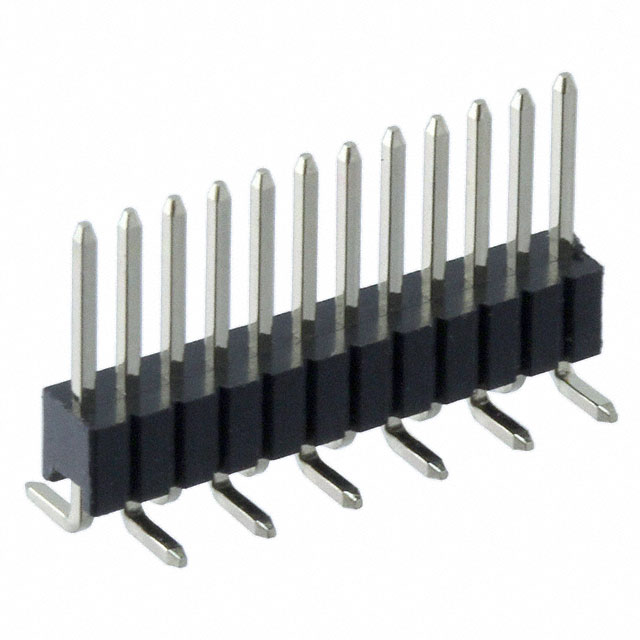

The M52-050000P1245 is a surface mount pin strip header manufactured by Harwin Inc. within the Archer M52 series. It features a 1.27 mm pitch and provides 12 positions in a single row configuration. The component utilizes 0.46 mm square pins for mating compatibility. Designed for board-to-board connections, it employs a straight vertical orientation suitable for surface mount technology applications.

Headers, Male Pins Feature Summary

• Surface mount construction for automated PCB assembly
• Compatible with 0.46 mm square mating pins
• Single row layout for compact design integration

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Surface mount manufacturing processes

Headers, Male Pins Procurement Notes

Verify the specific suffix P1245 against official Harwin documentation to confirm exact plating specifications and termination type. Ensure the procurement source provides valid manufacturer traceability. Confirm that the single-row receptacle format matches the intended PCB footprint requirements before finalizing orders.

Headers, Male Pins Selection Notes

Select this component when a 1.27 mm pitch surface mount header is required for single-row applications. Verify that the mating connector utilizes 0.46 mm square pins to ensure proper mechanical engagement. Consider the vertical profile height constraints of the assembly during the design phase.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M52 series, which standardizes connectors using 0.46 mm square pins. The series offers various configurations including single and double rows with different mounting styles. The M52 designation indicates the specific pin geometry and pitch standard used across the product family.

Headers, Male Pins Replacement Considerations

Consult official Harwin cross-reference tools for parametrically similar parts. Verify that any substitute maintains the 1.27 mm pitch and 0.46 mm square pin compatibility to ensure functional equivalence.
