M52-5000345

Headers, Receptacles, Female Sockets Overview

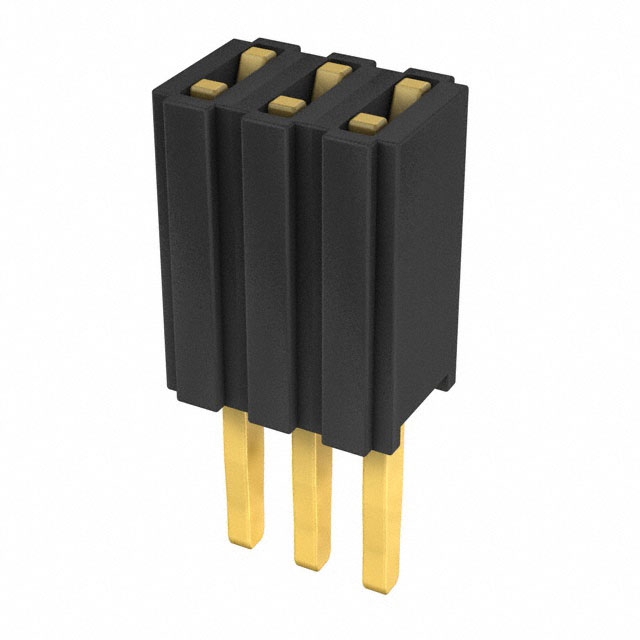

The M52-5000345 is a 3-position receptacle connector from the Harwin Archer M52 series. It features a 1.27mm (0.050 inch) pitch and utilizes a single row of female sockets. Designed for through-hole mounting, it employs gold-plated phosphor bronze contacts within a black polyamide insulation housing. The component supports a rated current of 1A and operates within a temperature range of -40°C to 105°C. It has an insulation height of 4.6mm and complies with UL94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical surface-mountable socket assembly designed for board-to-board interconnection
• Gold-plated contact finish ensures reliable signal transmission in high-reliability applications
• Push-pull locking mechanism provides secure mating stability during operation

Headers, Receptacles, Female Sockets Applications

• Medical equipment internal connections
• Telecommunications infrastructure modules
• General industrial control systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify component status as this specific part number may be discontinued or subject to product change notifications. Confirm availability through authorized distributors only. Check for valid RoHS3 compliance documentation. Ensure storage conditions meet moisture sensitivity level requirements prior to soldering. Validate that the procurement source provides original manufacturer packaging integrity.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, high-density vertical socket is required for rigid PCB assemblies. The 1.27mm pitch allows for compact circuit board layouts. Consider the through-hole termination method for robust mechanical anchoring. Evaluate the 1A current rating against system power requirements. Ensure mating pin dimensions align with the specified 0.46mm square profile for optimal contact engagement.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Archer M52 series, characterized by its slim profile and high reliability. The series is engineered for demanding environments requiring stable electrical connections. The M52-5000345 specifically represents a short, 3-position variant within this family, offering a cost-effective solution for minimal I/O requirements in space-constrained designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status indicated in some sources, verify if newer revisions of the M52 series offer equivalent pin counts and form factors. Cross-reference with Harwin's current catalog for direct replacements.
