M52-5001545

Headers, Receptacles, Female Sockets Overview

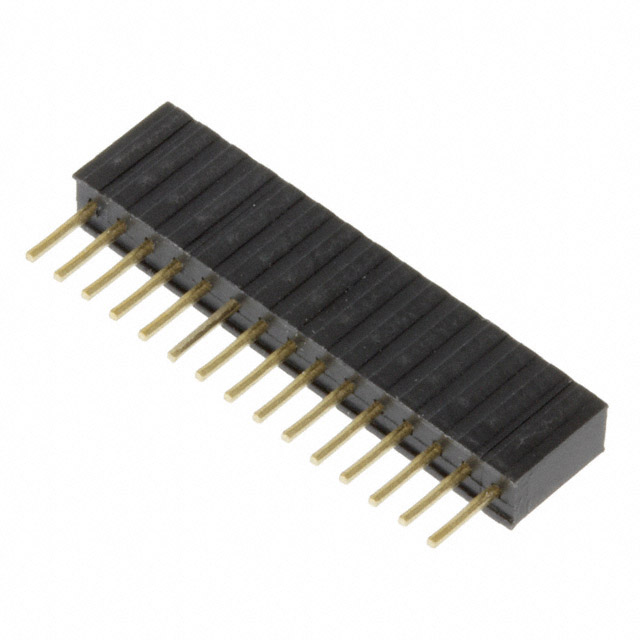

The Harwin M52-5001545 is a 15-position female receptacle connector from the Archer M52 series. It features a 0.050 inch (1.27mm) pitch and utilizes through-hole termination for board-to-board mounting. The contacts are made of phosphor bronze with gold plating, ensuring reliable signal transmission. The housing is constructed from black polyamide (PA6T), rated UL94 V-0 for flammability. It operates within a temperature range of -40°C to 105°C and has an insulation height of 0.181 inches (4.60mm).

Headers, Receptacles, Female Sockets Feature Summary

• Utilizes 0.46mm square pin design for robust mechanical engagement.
• Features push-pull latching mechanism for secure connection retention.
• Constructed with high-temperature resistant PA6T insulator material.

Headers, Receptacles, Female Sockets Applications

• General electronic interconnects
• Medical device assemblies
• Telecommunications equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm exact contact length and stacking height requirements. Ensure the selected variant matches the intended PCB thickness and mating header specifications. Cross-reference the RoHS3 compliance status with current regulatory standards for the target market before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a single-row, vertical through-hole female connector is required for dense board-to-board applications. The 1.27mm pitch allows for compact layout designs while maintaining adequate spacing. Consider the 4.6mm profile height for clearance constraints within the enclosure. Verify mating compatibility with corresponding male headers in the same M52 series family.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer M52 series, which is characterized by its use of square pins rather than round ones. This design enhances mechanical stability and reduces contact resistance compared to traditional round-pin connectors. The series offers various row configurations and termination styles to support diverse industrial and commercial electronics manufacturing needs.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires identical electrical and mechanical parameters. Consult Harwin engineering for potential obsolescence management or alternative series recommendations if this specific 15-position variant is discontinued.

Headers, Receptacles, Female Sockets FAQ

What is the contact material used in the M52-5001545?

The contacts are manufactured from phosphor bronze with a gold plating finish.

Does this connector support surface mount installation?

No, the M52-5001545 is specifically designed for through-hole (THT) mounting only.
