M52-5051345

Headers, Receptacles, Female Sockets Overview

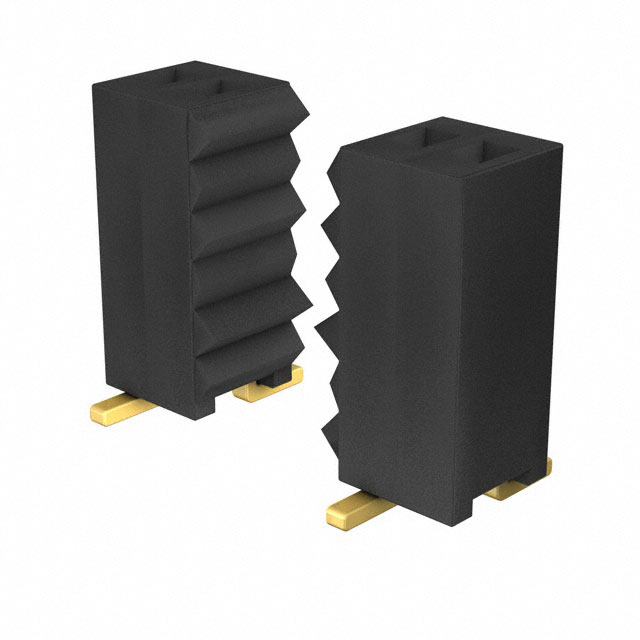

The M52-5051345 is a 13-position receptacle connector from the Harwin Archer M52 series. It features a 0.050 inch (1.27mm) pitch and utilizes surface mount termination for PCB integration. The contacts are made of phosphor bronze with gold plating, housed in black polyamide insulation rated UL94 V-0. Designed for board-to-board applications, it supports a current rating of 1A and operates within a temperature range of -40°C to 105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount architecture ensures secure PCB attachment without through-hole requirements.
• Gold-plated phosphor bronze contacts provide reliable signal transmission and corrosion resistance.
• High-temperature polyamide insulation maintains structural integrity under thermal stress.

Headers, Receptacles, Female Sockets Applications

• Telecommunications equipment interconnects
• Medical device circuit boards
• General industrial electronics

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official Harwin documentation. Confirm that the specific suffix matches the required 13-position surface mount configuration. Ensure compliance with RoHS3 standards and check for any recent product change notices or lifecycle status updates before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, single-row surface mount solution is required for high-density layouts. The 1.27mm pitch accommodates standard board spacing while the 1A rating suits general signal and low-power data lines. Consider the vertical orientation and stack height constraints relative to adjacent components during mechanical design.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Archer M52 family, characterized by compact dimensions and robust performance. The series offers various pin counts and mounting styles, providing designers with flexible options for space-constrained electronic assemblies requiring reliable board-to-board connectivity.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other 13-position, 1.27mm pitch surface mount receptacles from the same manufacturer series. Verify identical mechanical footprint, contact material specifications, and insulation ratings to ensure functional compatibility without redesigning the PCB layout.
