M55-3100242R

Headers, Male Pins Overview

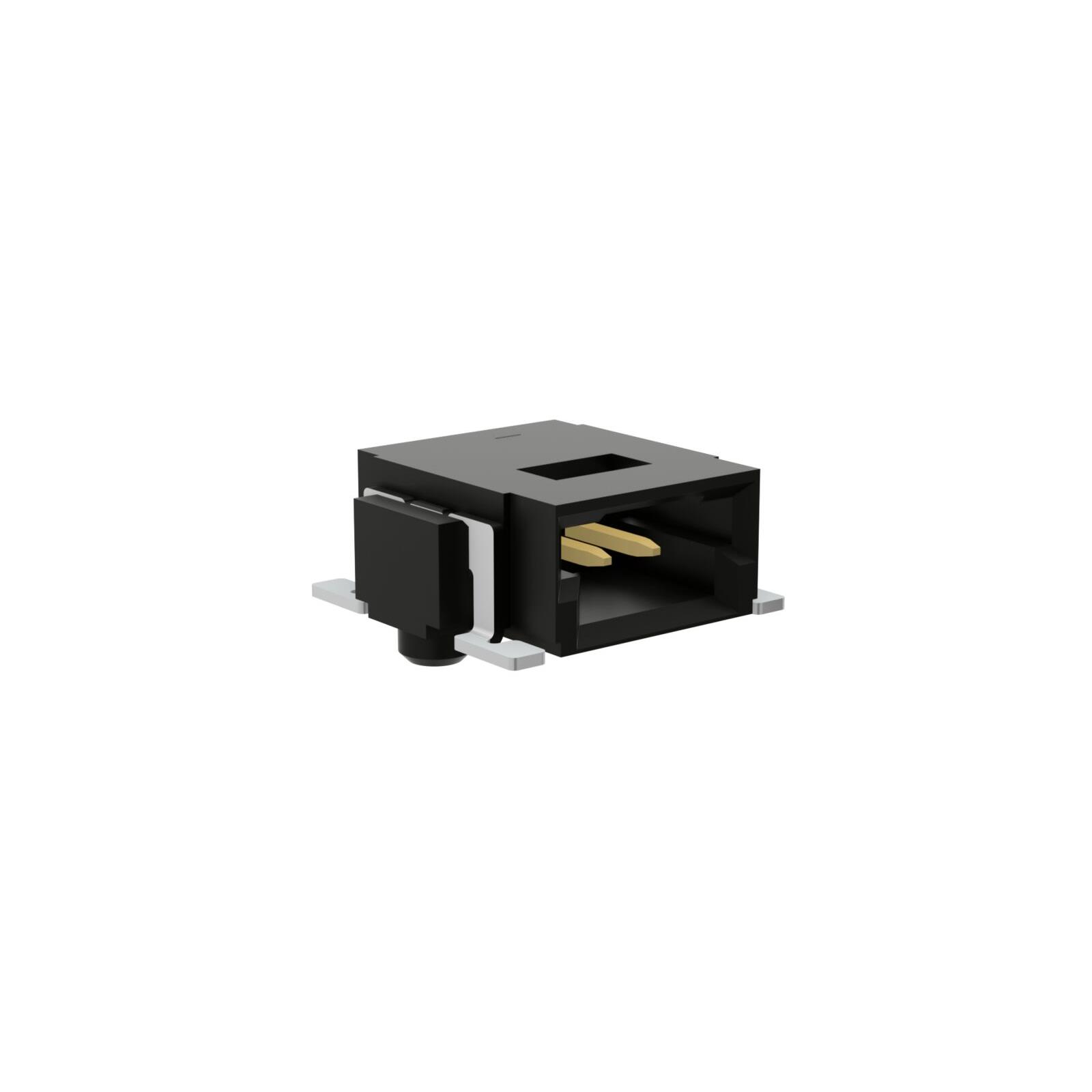

The M55-3100242R is a surface-mount header connector from the Harwin Archer Kontrol series. It features a 1.27 mm pitch with two positions in a single row configuration. Designed for horizontal SMT installation, it utilizes gold-plated phosphor bronze contacts and a black polyamide housing rated UL 94 V-0. The component supports a current rating of 1 A and operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Horizontal surface-mount design for compact board integration
• Gold-plated phosphor bronze contacts for reliable conductivity
• Polyamide housing with UL 94 V-0 flammability rating

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Compact electronic module assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' against official datasheets to confirm reel packaging specifications. Ensure compatibility with automated pick-and-place equipment by checking tape dimensions. Confirm that the horizontal orientation aligns with the target PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this part when a low-profile, two-position horizontal header is required. It is suitable for applications needing a single-row interface with standard 1.27 mm spacing. Consider the 1 A current rating and thermal limits when designing for high-power or high-temperature environments.

Headers, Male Pins Part Context

This component belongs to the Archer Kontrol family, which specializes in robust surface-mount solutions. The M55 series typically offers higher performance than standard headers, featuring precise alignment and durable materials suitable for demanding industrial and consumer electronics applications requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
