M55-6023242R

Headers, Receptacles, Female Sockets Overview

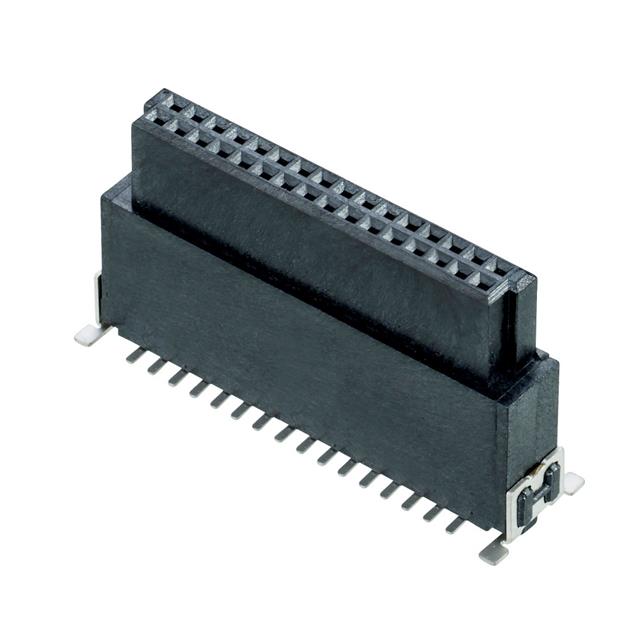

The M55-6023242R is a Harwin Archer Kontrol board-to-board connector featuring a 1.27 mm pitch and 32 positions in a dual-row configuration. It utilizes a female receptacle design with gold-plated phosphor bronze contacts housed in liquid crystal polymer (LCP). The component supports surface mount vertical termination, rated for 1.2 A current and 100 VAC voltage. Operating temperatures range from -55°C to +125°C, with UL 94 V-0 flammability classification.

Headers, Receptacles, Female Sockets Feature Summary

• Archer Kontrol series provides high-density interconnect capabilities with precise alignment features.
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance.
• Vertical surface mount design facilitates compact PCB stacking applications.

Headers, Receptacles, Female Sockets Applications

• High-density electronic module interconnections
• Industrial control system board connections
• Telecommunications equipment internal linking

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and contact gender against project requirements before ordering. Confirm that the vertical orientation and 1.27 mm pitch match the target PCB layout. Ensure compatibility with standard reflow soldering profiles for surface mount assembly. Check for RoHS compliance documentation if required by regulatory standards.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a 32-position vertical interface is required within the Archer Kontrol family. Consider the 1.27 mm pitch constraint for trace routing density. Evaluate the 1.2 A current rating against total load requirements. Compare against male header counterparts for mating pair verification.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Archer Kontrol M55 series, designed for space-constrained electronics. The series emphasizes reliability through robust mechanical locking and consistent electrical performance across various industrial environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes within the same series include M55-6006842R (68 position) or M55-6012642R (26 position) for different pin counts. Cross-series replacements require verifying pitch and mechanical dimensions.
