M55-6024042R

Headers, Receptacles, Female Sockets Overview

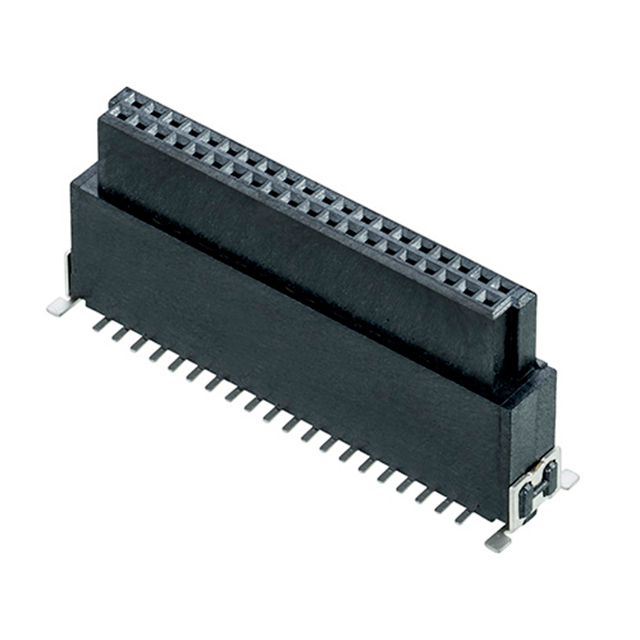

The Harwin M55-6024042R is a board-to-board and mezzanine connector from the Archer Kontrol series. It features a 1.27 mm pitch with 40 positions arranged in two rows. The component utilizes a vertical surface mount technology (SMT) termination style. Electrical ratings include a current capacity of 1.2 A and a voltage rating of 100 VAC. The operating temperature range spans from -55°C to +125°C. Contact plating consists of gold over phosphor bronze, while the housing is constructed from liquid crystal polymer (LCP).

Headers, Receptacles, Female Sockets Feature Summary

• Vertical surface mount architecture for direct PCB integration.
• Gold-plated phosphor bronze contacts ensuring reliable signal transmission.
• High-temperature resistant LCP insulation material rated UL 94 V-0.

Headers, Receptacles, Female Sockets Applications

• Automotive electronic systems
• Industrial control equipment
• General purpose circuit interconnections

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 40-position configuration and vertical orientation. Confirm compliance with RoHS directives as indicated in official documentation. Ensure storage conditions maintain integrity prior to soldering processes defined by manufacturer guidelines.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile vertical interconnect is required for high-density applications. The 1.27 mm pitch allows for compact board layouts. Consider the 1.2 A current rating for power distribution needs within the specified thermal environment limits.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Harwin Archer Kontrol M55 family, designed for robust board-to-board connections. The series offers various pin counts and orientations to support diverse electronic assembly requirements across multiple industries.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching pitch, position count, and mounting style specifications.
