M55-6102042R

$2.71

Description：CONN RCPT 20P 0.05 GOLD SMD R/A
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e242d80ad7e2 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M55-6102042R is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 20P 0.05 GOLD SMD R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M55-6102042R

Description：CONN RCPT 20P 0.05 GOLD SMD R/A
Series：Kontrol
Mfr：Harwin Inc.
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：20
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Latch Holder
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：1.00µin (0.025µm)
Insulation Color：Black
Insulation Height：0.146" (3.70mm)
Contact Length - Post：-
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：Board Guide, Solder Retention
Current Rating (Amps)：1.2A
Voltage Rating：100VAC

Headers, Receptacles, Female Sockets datasheet and documents for M55-6102042R

M55-6102042R

Headers, Receptacles, Female Sockets Overview

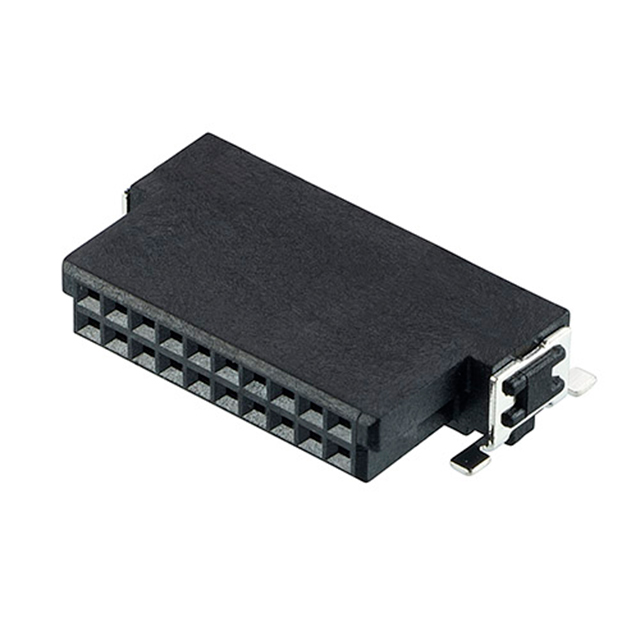

The Harwin M55-6102042R is a board-to-board and mezzanine connector from the Archer Kontrol series. It features a 1.27 mm pitch with 2 rows and 20 positions. The component utilizes a female contact configuration with surface mount technology in a right-angle orientation. Electrical ratings include a current capacity of 1.2 A and a voltage rating of 100 VAC. The operating temperature range spans from -55°C to +125°C. Contacts are gold-plated phosphor bronze, housed in liquid crystal polymer (LCP) rated UL 94 V-0.

Headers, Receptacles, Female Sockets Feature Summary

Right-angle surface mount design for compact vertical integration
Gold-plated phosphor bronze contacts for reliable signal transmission
High-temperature resistant LCP housing material

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnections
Mezzanine stack applications
Compact electronic module assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix 'R' indicates reel packaging when sourcing. Confirm the right-angle orientation matches the target PCB layout requirements. Ensure compatibility with the corresponding male header within the same Archer Kontrol series for proper mating engagement.

Headers, Receptacles, Female Sockets Selection Notes

Select this part for applications requiring a low-profile right-angle connection between two boards. The 1.27 mm pitch allows for high-density routing. Consider the 20-position count and dual-row arrangement against available board space constraints.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin M55 Archer Kontrol family, designed for high-reliability interconnects. The series offers various configurations including vertical and right-angle options with different pin counts to suit diverse electronic assembly needs.
