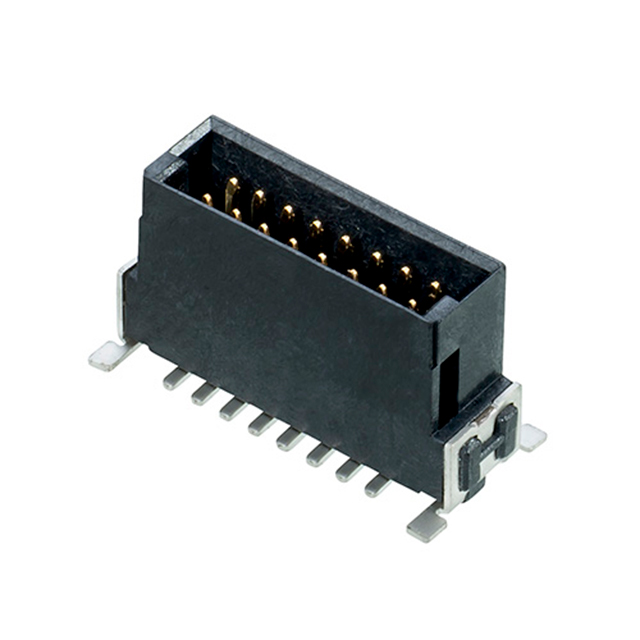

M55-7011642R

M55-7011642R is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER SMD 16POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M55-7011642R

• Description：CONN HEADER SMD 16POS 1.27MM
• Series：Kontrol
• Mfr：Harwin Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.050" (1.27mm)
• Number of Positions：16
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Latch Lock
• Contact Length - Mating：0.157" (4.00mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.325" (8.25mm)
• Contact Shape：Rectangular
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：1.00µin (0.025µm)
• Contact Finish - Post：Tin
• Contact Material：Phosphor Bronze
• Insulation Material：Liquid Crystal Polymer (LCP)
• Features：Board Guide, Pick and Place, Solder Retention
• Operating Temperature：-55°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：1.2A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for M55-7011642R
