M55-7101642R

Headers, Male Pins Overview

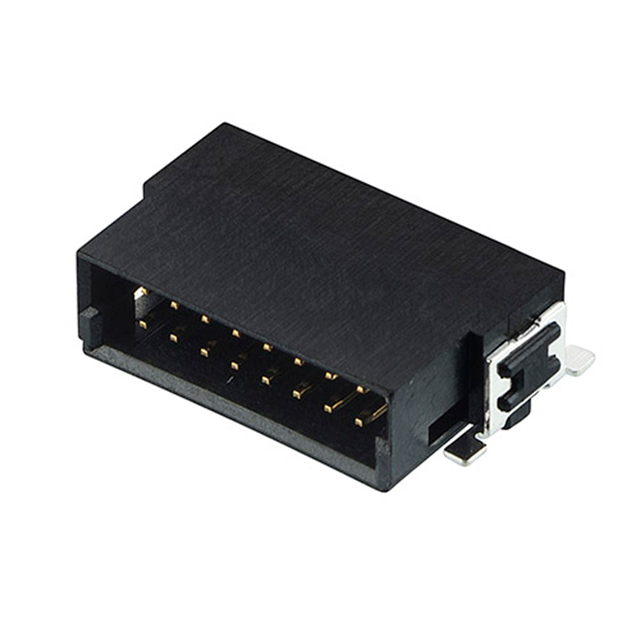

The M55-7101642R is a 16-position male header connector from the Harwin Kontrol series, designed for surface mount applications. It features a 1.27mm pitch and right-angle orientation for board-to-board or mezzanine connections. The connector utilizes phosphor bronze contacts with gold plating and an LCP housing rated UL94 V-0. It supports data rates up to 1.5GHz (3Gb/s) and operates within a temperature range of -55°C to +125°C.

Headers, Male Pins Feature Summary

• High-speed signal transmission capability supporting up to 1.5GHz data rates
• Right-angle surface mount design for compact PCB integration
• Push-pull locking mechanism ensures secure mating retention

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Mezzanine card connections
• Data communication equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix '42R' against the official Harwin component specification C047XX to confirm pin numbering and contact configuration. Ensure compatibility with the corresponding female socket in the same Kontrol series family. Cross-reference the datasheet for exact mechanical dimensions and reflow soldering profiles prior to implementation.

Headers, Male Pins Selection Notes

Select this part for applications requiring high-speed data integrity in space-constrained environments. The right-angle SMT form factor facilitates vertical stacking or edge connections. Confirm that the mating partner provides compatible push-pull retention and matches the 1.27mm pitch requirement for reliable electrical performance.

Headers, Male Pins Part Context

This component belongs to the Archer Kontrol M55 series, characterized by robust mechanical retention and high-frequency performance. The series offers various configurations including vertical and right-angle headers and sockets, catering to diverse board-to-board and cable-to-board connectivity needs in industrial and consumer electronics.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 16-position, 1.27mm pitch, right-angle SMT male headers from the Harwin Kontrol family, such as M55-7101642T, provided mechanical and electrical specifications match exactly.
