MA4X159AGL

Diode Arrays Overview

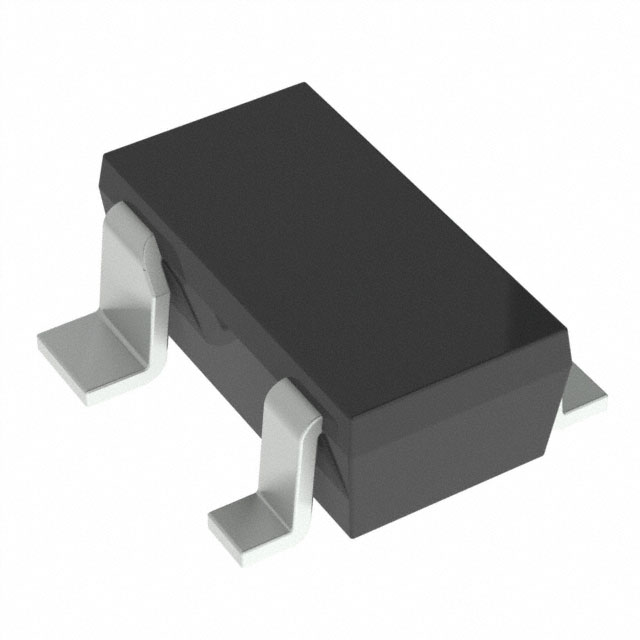

The MA4X159AGL is a silicon epitaxial planar switching diode manufactured by Panasonic Electronic Components. It contains two isolated elements within a single Mini4-G3 package, designed for high-density mounting in switching circuits. The device features a maximum reverse voltage of 80 V and a peak forward current rating of 225 mA per element. Key electrical characteristics include a short reverse recovery time of 3 ns and low terminal capacitance of 2.0 pF. The component complies with the RoHS Directive (EU 2002/95/EC) and operates within a junction temperature range up to 150 °C.

Diode Arrays Feature Summary

• Contains two electrically isolated diode elements within a single package to facilitate high-density circuit mounting.
• Features a short reverse recovery time suitable for high-speed switching applications.
• Exhibits small terminal capacitance to minimize signal interference.

Diode Arrays Applications

• High-speed switching circuits
• General electronic equipment
• Communications equipment

Diode Arrays Procurement Notes

Verify the specific ordering suffix 'GL' against official Panasonic documentation to confirm packaging details. Confirm the current lifecycle status as the datasheet indicates maintenance or discontinuation phases. Ensure compliance requirements match the target application standards before procurement.

Diode Arrays Selection Notes

Select this component when dual isolated switching functions are required in a compact surface-mount footprint. Evaluate the 80 V reverse voltage and 225 mA peak current ratings against circuit demands. Consider the 3 ns reverse recovery time for high-frequency operation requirements.

Diode Arrays Part Context

This part belongs to the MA4X series of silicon epitaxial planar switching diodes produced by Panasonic. These components are engineered for standard applications in office equipment, measuring instruments, and household appliances. The Mini4-G3 package provides a standardized form factor for automated assembly processes.

Diode Arrays Replacement Considerations

Consult the official Panasonic replacement guide at http://www.semicon.panasonic.co.jp/en/ for verified substitute part numbers due to potential lifecycle changes.

Diode Arrays FAQ

What is the internal pin configuration of the MA4X159AGL?

Pin 1 is Cathode 1, Pin 2 is Cathode 2, Pin 3 is Anode 2, and Pin 4 is Anode 1.

What is the guaranteed reverse recovery time?

The reverse recovery time is typically 3 ns under conditions of IF = 10 mA, VR = 6 V, Irr = 0.1 IR, and RL = 100 Ω.

Is the device compliant with environmental directives?

Yes, the product complies with the RoHS Directive (EU 2002/95/EC).
