MBR400100CT

Diode Arrays Overview

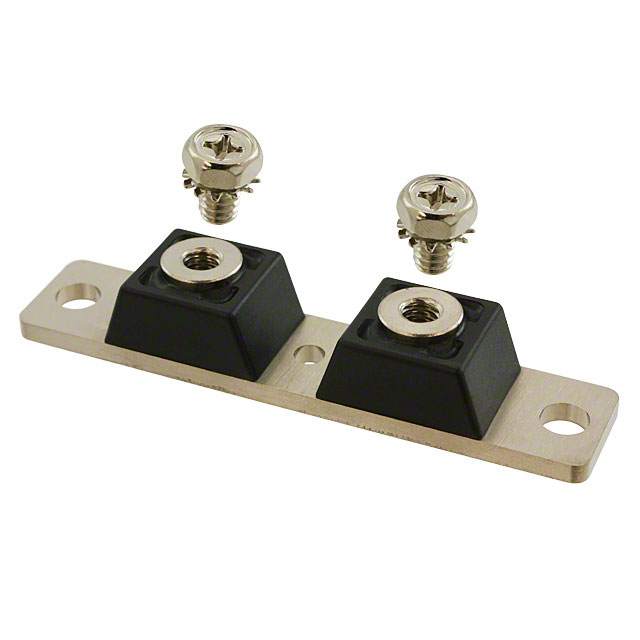

The MBR400100CT is a silicon power Schottky diode module manufactured by GeneSiC Semiconductor. It features a Twin Tower package with screw mount installation. The device supports an average forward current of 400 A per package and offers a repetitive peak reverse voltage of 100 V. Maximum ratings include a peak forward surge current of 3000 A per leg at Tj = 25 °C. Thermal resistance from junction to case is 0.35 °C/W per leg. Operating and storage temperatures range from -55 °C to +150 °C.

Diode Arrays Feature Summary

• High surge capability for robust performance under transient conditions
• Twin Tower package design for efficient thermal management
• Not ESD sensitive for simplified handling

Diode Arrays Applications

• DC-DC converters
• Free-wheeling rectification in motor drives
• Power supply output rectification

Diode Arrays Procurement Notes

Verify the specific part number suffix against official documentation, as variations may exist. Confirm RoHS compliance status through the manufacturer's latest datasheet or product compliance reports before finalizing procurement specifications. Ensure the supplier provides valid traceability documents matching the GeneSiC Semiconductor branding.

Diode Arrays Selection Notes

Select this component when high average forward current and low forward voltage drop are required in a compact form factor. The Twin Tower package facilitates effective heat dissipation via screw mounting. Verify that the system's thermal environment allows operation within the specified -55 °C to +150 °C junction temperature range.

Diode Arrays Part Context

This module belongs to the MBR400 series of silicon power Schottky diodes. The series includes variants with different reverse voltage ratings ranging from 45 V to 100 V. All models share similar current handling capabilities and package configurations, designed for high-efficiency power conversion applications requiring fast switching characteristics.

Diode Arrays Replacement Considerations

Direct substitutes within the same series include MBR40045CT, MBR40060CT, and MBR40080CT, which offer lower reverse voltage ratings but identical current and thermal characteristics. Cross-brand replacements require careful verification of pinout compatibility, thermal resistance values, and maximum surge current ratings.
