MBR40035CT

Diode Arrays Overview

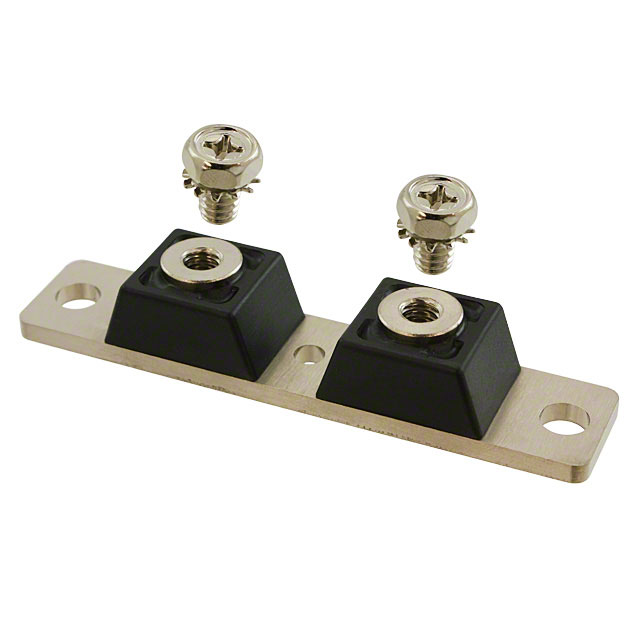

The GeneSiC Semiconductor MBR40035CT is a silicon power Schottky diode module rated for a repetitive peak reverse voltage of 35 V and an average forward current of 400 A per package. It utilizes a Twin Tower package design with a maximum forward voltage of 0.70 V per leg at 25 °C. The device supports an operating temperature range from -55 °C to +150 °C and features a thermal resistance of 0.35 °C/W per leg. Peak forward surge current capability reaches 3000 A for an 8.3 ms half-sine pulse.

Diode Arrays Feature Summary

• High surge current capability
• Twin Tower package configuration
• Not ESD sensitive

Diode Arrays Applications

• DC-DC converters
• Free-wheeling rectification in motor drives
• Power supply output rectification

Diode Arrays Procurement Notes

Verify the specific part number suffix against official documentation, as variations may exist. Confirm manufacturing origin and RoHS compliance status prior to integration. Ensure thermal management solutions align with the specified junction-to-case thermal resistance values for reliable operation under load conditions.

Diode Arrays Selection Notes

Select this component for applications requiring high current handling with low forward voltage drop. The Twin Tower package facilitates efficient heat dissipation and mechanical mounting. Evaluate thermal constraints carefully, as performance depends on maintaining junction temperatures within the specified -55 °C to +150 °C operational range during continuous duty cycles.

Diode Arrays Part Context

This module belongs to the MBR400 series of silicon Schottky rectifiers, designed for high-efficiency power conversion. The series offers various voltage ratings from 20 V to 40 V while maintaining consistent current and thermal characteristics across variants.

Diode Arrays Replacement Considerations

Direct substitutes include MBR40020CT and MBR40030CT for lower voltage requirements, or MBR40040CT for higher voltage tolerance. Verify pinout compatibility and thermal interface specifications when cross-referencing.
