MC-V09-948-Q

Alarms, Buzzers, And Sirens Overview

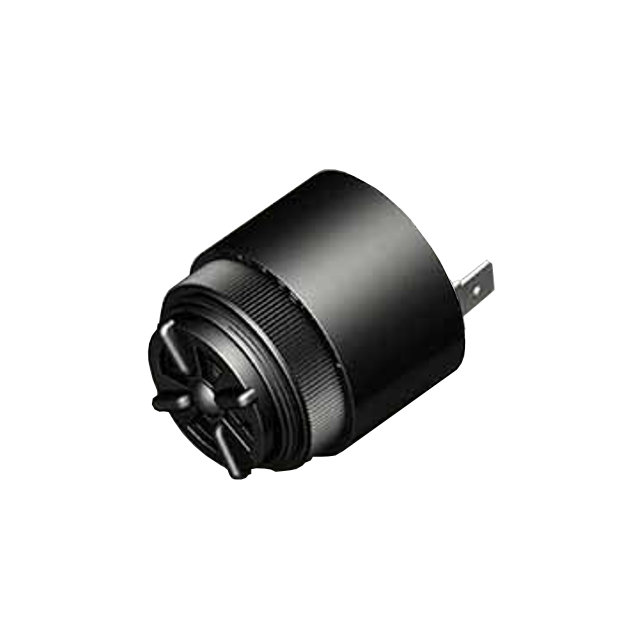

The MC-V09-948-Q is an internally driven piezo buzzer from the Floyd Bell AudioLarm II series. It features a continuous tone output with a sound pressure level of 85-95 dB(A). The device operates on a DC voltage range of 9 to 48 Vdc with a current draw of 5-20 mA. It utilizes quick connect blade terminals for electrical connection and includes volume control functionality. The unit is designed for panel mounting with a diameter of approximately 35.81 mm.

Alarms, Buzzers, And Sirens Feature Summary

• Internally driven piezo technology for direct DC input
• Integrated volume control mechanism
• Continuous tone alarm output capability
• Panel mount design with quick connect blade termination

Alarms, Buzzers, And Sirens Applications

• Industrial equipment status indication
• Control panel alarm signaling
• Security system audio alerts
• Medical device operational feedback

Alarms, Buzzers, And Sirens Procurement Notes

Verify the specific suffix requirements against the official datasheet, as variations such as (S) or (M) may indicate distinct mechanical or electrical configurations. Confirm that the operating voltage range aligns with the system power supply. Ensure the panel cutout dimensions accommodate the 35.81 mm diameter. Validate terminal compatibility with existing wiring harnesses before procurement.

Alarms, Buzzers, And Sirens Selection Notes

Select this component when a high-decibel continuous tone is required for critical alarms. The wide voltage tolerance supports diverse industrial power environments. The internal driver simplifies circuit design by eliminating external oscillators. Consider the physical size constraints for panel integration. Verify ambient temperature ratings if deployed in extreme conditions.

Alarms, Buzzers, And Sirens Part Context

This part belongs to the AudioLarm II series, which focuses on robust panel-mounted signaling solutions. The manufacturer specializes in audible warning devices for commercial and industrial sectors. This model represents a standard configuration within their broader lineup of piezo buzzers, emphasizing reliability and straightforward installation.

Alarms, Buzzers, And Sirens Replacement Considerations

Cross-reference with MB-V09-948-Q(S) or MW-V09-948-Q(M) for potential mechanical or variant differences. Ensure substitute parts maintain identical voltage ranges and decibel outputs. Verify terminal type compatibility to avoid rewiring modifications during replacement.
