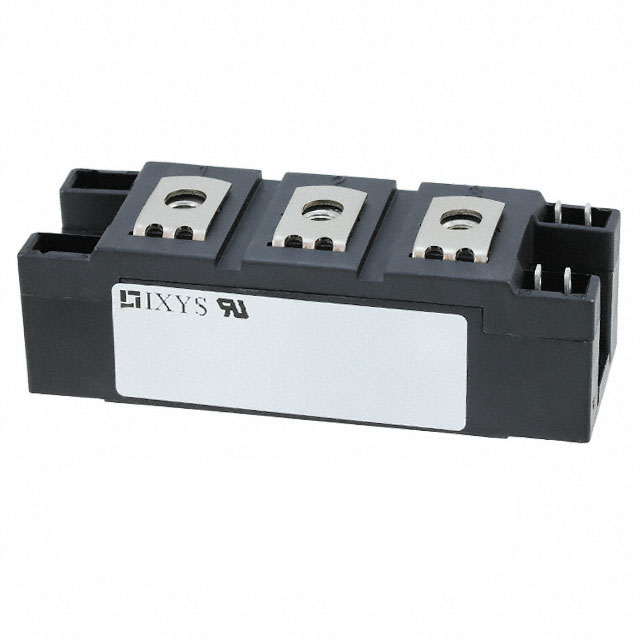

MCC132-16IO1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：THYRISTOR MOD 1600V 2X138A
- Series：-
- Mfr：IXYS
- Package：Bulk
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：1.6 kV
- Current - On State (It (AV)) (Max)：130 A
- Current - On State (It (RMS)) (Max)：300 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：4750A, 5080A
- Operating Temperature：-40°C ~ 125°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Y4-M6
- Voltage - Gate Trigger (Vgt) (Max)：2.5 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：200 mA
- Grade：-
- Qualification：-
Download product information
Overview
The IXYS MCC132-16IO1 is a single thyristor module designed for high-power industrial applications. It features a rated average on-state current of 132 A and a repetitive peak off-state voltage of 1600 V. The device supports a non-repetitive surge current of 1.8 kA and has a maximum gate trigger current of 150 mA. It operates within a temperature range of -40°C to +125°C and utilizes the Y1-CU package style with screw mounting.
Feature Summary
- High-voltage blocking capability suitable for demanding power conversion environments
- Robust thermal performance allowing operation in wide ambient temperature ranges
- Standardized mechanical footprint facilitating integration into existing panel designs
Applications
- Industrial motor drives and variable frequency drives
- DC power supply systems
- Resistive load control circuits
Procurement Notes
Verify the specific suffix codes against official datasheets to confirm exact electrical tolerances and packaging variations. Ensure compatibility with existing cooling infrastructure, as thermal management is critical for maintaining the specified current ratings. Cross-reference manufacturer part numbers to avoid confusion with similar series components that may have different voltage or current specifications.
Selection Notes
Select this component when a 1600 V rating and 132 A continuous current are required in a compact module form factor. Consider the Y1-CU package dimensions for PCB or chassis layout constraints. Evaluate the thermal resistance characteristics against the expected duty cycle to ensure junction temperatures remain within safe operating limits during peak load conditions.
Part Context
This module belongs to the MCC series of thyristor modules from IXYS, which are engineered for general-purpose high-power switching. The series offers various current and voltage combinations to suit diverse industrial needs. The MCC132-16IO1 specifically targets applications requiring reliable SCR performance with standardized mounting interfaces common in power electronics assemblies.
Replacement Considerations
Direct substitutes include other IXYS models within the MCC series with matching voltage and current ratings, such as the MCC162-16IO1 for higher current capacity. Verify pinout compatibility and thermal interface requirements before replacing with cross-brand alternatives.
