MCL0805FRD1GR1T-CT

LED Indication - Discrete Overview

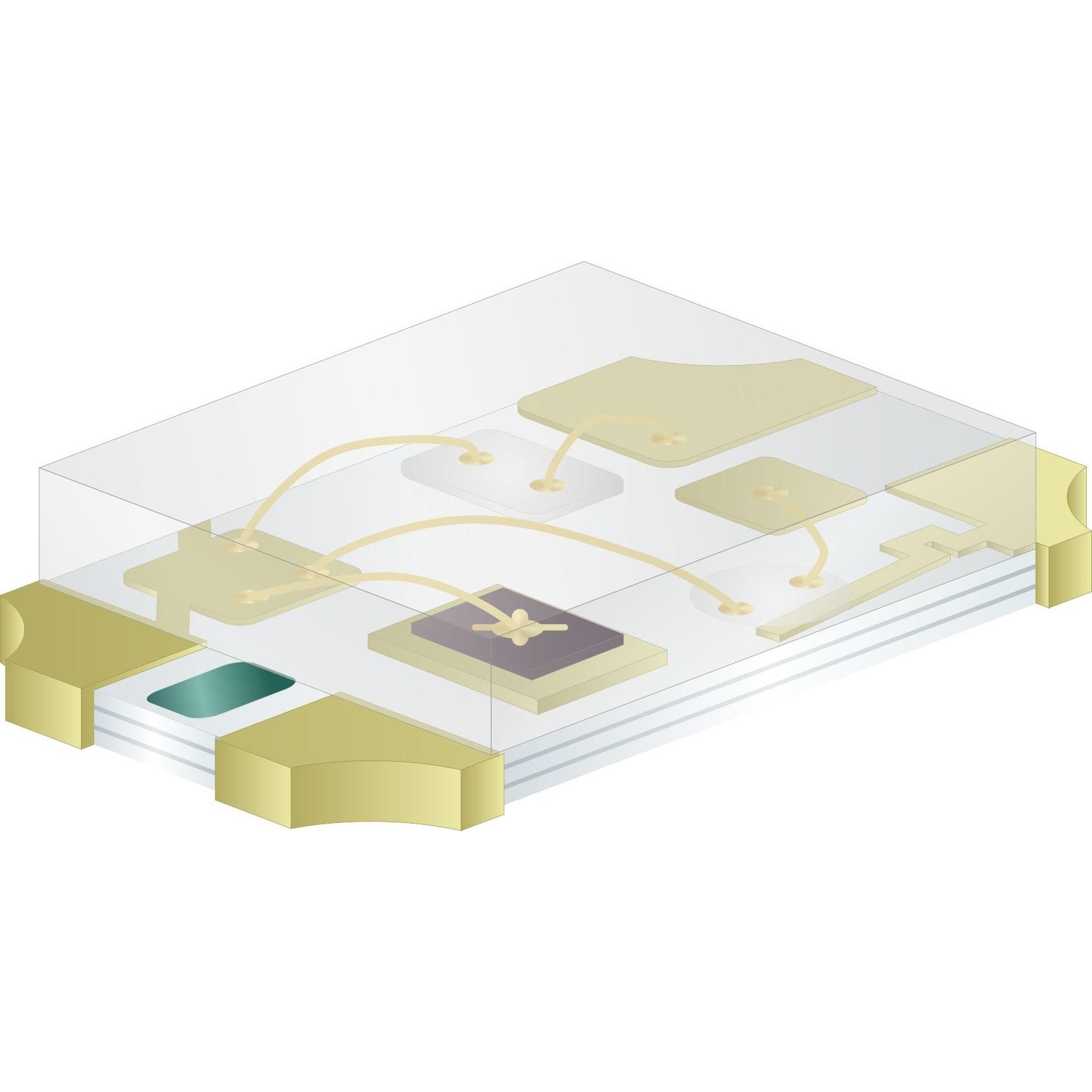

The MCL0805FRD1GR1T-CT is a multi-color surface-mount LED from Venkel, featuring a flat lens design in an 0805 package. It integrates red and green light sources within a single component. The device operates with a forward voltage of 1.5V for the red channel and 1.7V for the green channel at a standard test current of 20mA. Optical specifications include a peak wavelength of 630nm for red and 574nm for green. This dual-emission configuration allows for versatile indication applications requiring distinct color outputs from a compact footprint.

LED Indication - Discrete Feature Summary

• Integrates red and green emission sources into a single surface-mount component
• Features a flat lens design for consistent optical output
• Supports independent control of red and green channels

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Multi-state signaling in consumer electronics
• Visual alerts in industrial control panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix designation to ensure compatibility with automated pick-and-place equipment requirements. Confirm that the ordering code matches the exact binning and packaging specifications required for your assembly line. Cross-reference the datasheet electrical parameters against your system's power supply constraints to ensure proper forward voltage handling.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require two distinct indicator colors. The 0805 form factor offers a balance between visibility and board real estate. Ensure the driving circuitry can accommodate the different forward voltages of the red and green segments independently or via appropriate current limiting resistors.

LED Indication - Discrete Part Context

This part belongs to Venkel's multi-color LED portfolio, designed for high-density mounting. It utilizes thin-film technology for reliable semiconductor junctions. The product line emphasizes stability and consistency across manufacturing batches, supporting mass production environments where uniform color rendering is critical for user interface clarity.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the 0805 package dimensions and the specific 630nm/574nm wavelength combination. Verify that alternative components support the same 1.5V and 1.7V forward voltage thresholds. Check for identical lens style and luminous intensity ratings to maintain visual consistency in the final application.
