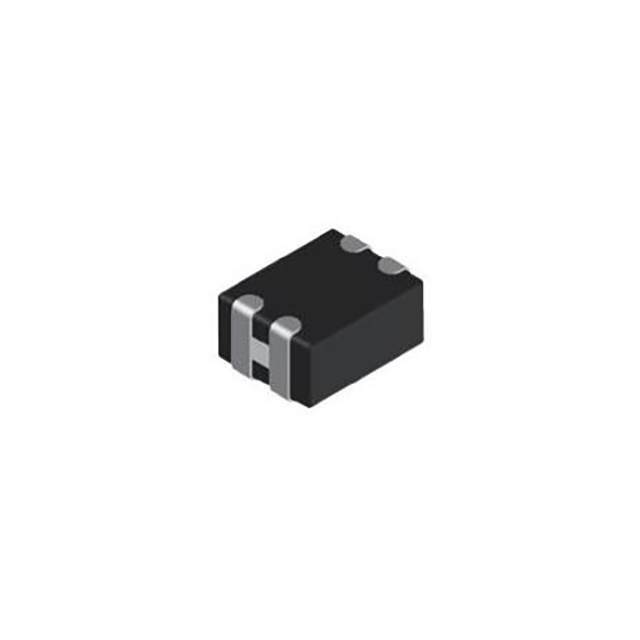

MCM1012B900F06BPDG

Common Mode Chokes Overview

The MCM1012B900F06BPDG is a two-line common mode choke from INPAQ Technology, designed for surface mount applications. It exhibits an impedance of 90 Ohms at 100 MHz and supports a maximum current rating of 300 mA. The component features a direct current resistance (DCR) of 600 mOhm. It operates within a temperature range of -40°C to +85°C and utilizes composite co-fired material technology to address electromagnetic interference issues in high-speed differential signal transmission lines.

Common Mode Chokes Feature Summary

• Utilizes composite co-fired material construction to effectively solve EMI problems in high-speed differential signal transmission lines such as USB and LVDS.

Common Mode Chokes Applications

• High-speed differential signal transmission line filtering
• USB interface circuit protection
• LVDS signal integrity enhancement

Common Mode Chokes Procurement Notes

Verify the specific suffix 'DG' against official INPAQ documentation to confirm RoHS compliance status and lead-free characteristics. Ensure the ordering part number matches the exact impedance and current ratings required for the target application. Cross-reference with the manufacturer's latest datasheet to confirm availability and any potential design changes or updates to the component specifications before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode noise suppression for differential signals like USB or LVDS. The 90 Ohm impedance at 100 MHz provides targeted attenuation for specific frequency ranges. The low DCR of 600 mOhm minimizes power loss in the signal path. Ensure the PCB layout accommodates the surface mount package dimensions and thermal requirements for the specified operating temperature range.

Common Mode Chokes Part Context

This component belongs to INPAQ's series of circuit protection and EMI/EMC solutions. It is engineered for computing, communication, consumer electronics, and automotive electronics applications. The product line focuses on providing reliable filtering capabilities using advanced monolithic inorganic materials to ensure high reliability and effective crosstalk avoidance in compact surface mount formats.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility with alternative components by matching impedance curves, current ratings, and package dimensions. Consult INPAQ Technology directly for recommended equivalents if the specific model MCM1012B900F06BPDG is unavailable or discontinued.
