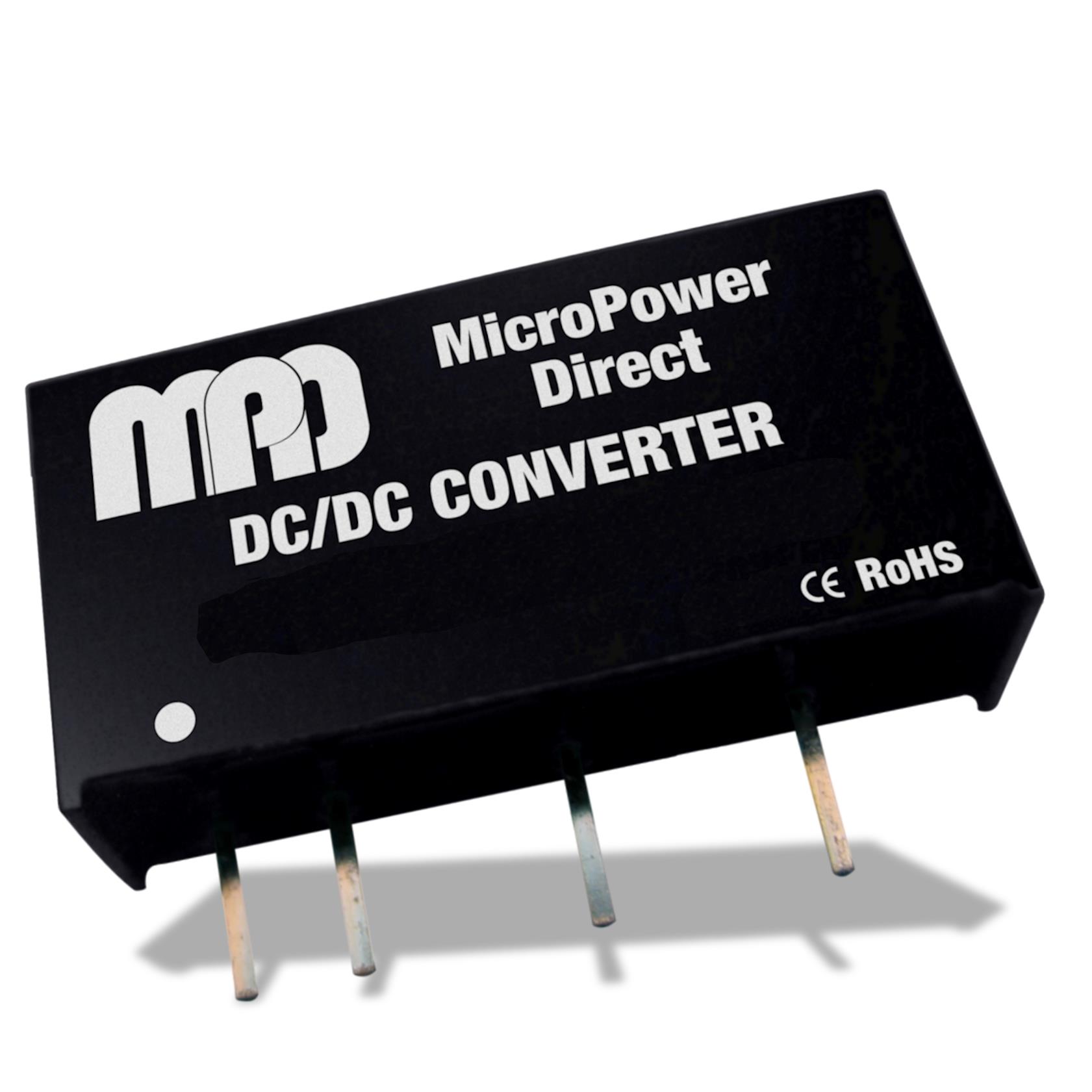

MD105S-15BR

MD105S-15BR is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,1W,5VIN,15VOUT,1 KVISO. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MD105S-15BR

• Description：DC/DC,1W,5VIN,15VOUT,1 KVISO
• Series：MD100BR (1W)
• Mfr：MicroPower Direct
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.75V
• Voltage - Input (Max)：5.25V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：67mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：72%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MD105S-15BR
