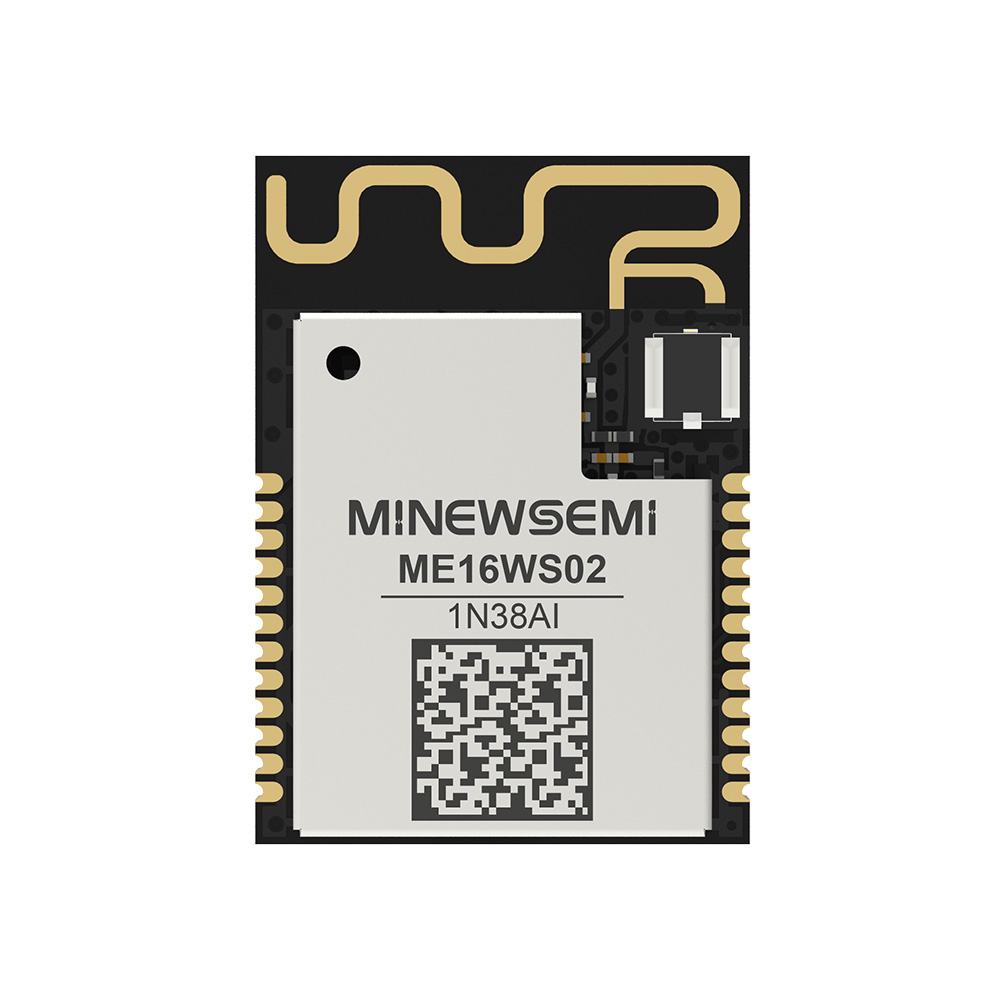

ME16WS02-1N38AIR

RF Transceiver Modules And Modems Overview

The ME16WS02-1N38AIR is a wireless module based on the BK7238 SoC, supporting Wi-Fi 4 (802.11b/g/n) and BLE 5.2. It operates at 2.4 GHz with transmit power of 19 dBm and RX sensitivity of -99 dBm. The module supports AP, STA, and AP+STA modes with high operating speeds up to 160MHz.

RF Transceiver Modules And Modems Feature Summary

• Integrates Wi-Fi 4 and BLE 5.2 connectivity within a single multifunctional unit.
• Supports flexible network configurations including Access Point, Station, and combined modes.
• Optimized for cost-effective IoT applications with efficient power consumption.

RF Transceiver Modules And Modems Applications

• Smart home devices requiring dual-mode connectivity
• IoT sensors needing reliable short-range communication
• Consumer electronics integrating wireless control features

RF Transceiver Modules And Modems Procurement Notes

Verify the specific suffix AIR against official MinewSemi documentation to confirm antenna type and regulatory compliance status. Ensure the BK7238-based variant matches your firmware requirements. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm pinout compatibility with your PCB design before ordering.

RF Transceiver Modules And Modems Selection Notes

Select this module when both Wi-Fi and Bluetooth Low Energy are required in a space-constrained, cost-sensitive design. The BK7238 platform offers sufficient processing speed for standard IoT tasks. Consider thermal management and antenna placement during layout to maintain the specified -99 dBm sensitivity and 19 dBm output performance.

RF Transceiver Modules And Modems Part Context

This component belongs to MinewSemi's portfolio of wireless modules designed for Internet of Things applications. It utilizes the BK7238 system-on-chip to deliver integrated radio capabilities. The product line focuses on providing scalable solutions for various connectivity standards while maintaining manufacturing efficiency.

RF Transceiver Modules And Modems Replacement Considerations

Direct substitutes may include other BK7238-based modules from MinewSemi or compatible chips from alternative manufacturers. Verify RF performance metrics and pin compatibility before swapping. Check for equivalent regulatory certifications if deploying in restricted regions.
