ME16WS03-3Y40TI

RF Transceiver Modules And Modems Overview

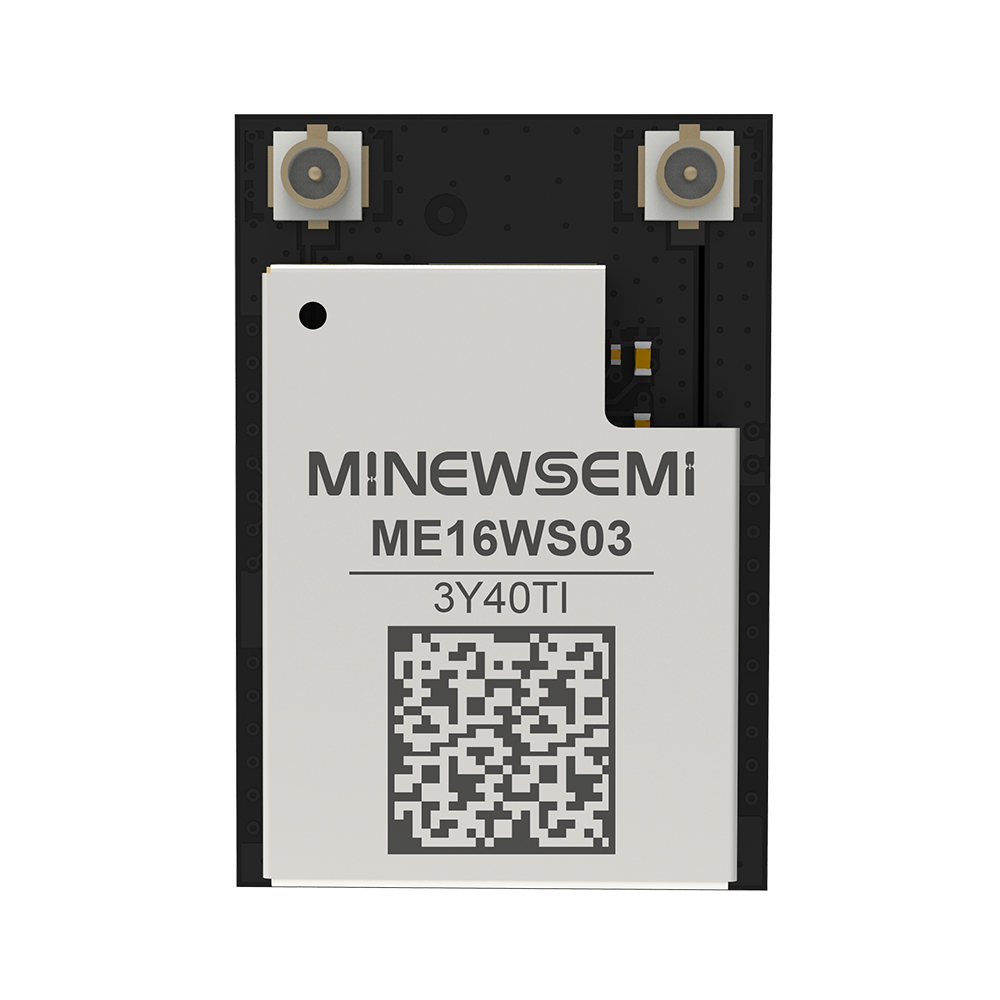

The ME16WS03-3Y40TI is a compact Wi-Fi 6 and Bluetooth Low Energy (BLE) 5.3 combo module manufactured by Minewsemi. It integrates the Nordic nRF7002 Wi-Fi controller and nRF5340 application processor, both in WLCSP packages. The module supports dual-band Wi-Fi operation at 2.4 GHz and 5 GHz with 1T1R configuration. Physical dimensions are 23.2mm x 16mm x 3.6mm. It includes 1MB of flash memory, 256KB of backup RAM, 512KB of main RAM, and 64KB of backup RAM. An u.FL connector is provided for external antenna attachment.

RF Transceiver Modules And Modems Feature Summary

• Integrates nRF7002 and nRF5340 chips for combined Wi-Fi 6 and BLE 5.3 connectivity
• Supports dual-band 2.4GHz and 5GHz Wi-Fi transmission modes
• Features ultra-low-power architecture suitable for battery-operated IoT devices
• Compact form factor designed for space-constrained embedded applications

RF Transceiver Modules And Modems Applications

• Smart home appliances requiring dual-band connectivity
• Industrial IoT sensors needing reliable wireless communication
• Wearable electronics utilizing BLE for data transfer
• Enterprise-grade IoT beacons and tracking tags

RF Transceiver Modules And Modems Procurement Notes

Verify the specific suffix -3Y40TI against official Minewsemi documentation to confirm regulatory certifications and antenna specifications. Ensure compatibility with host system voltage levels and interface requirements before integration. Request updated datasheets from authorized distributors to validate current production status and component revisions.

RF Transceiver Modules And Modems Selection Notes

Select this module when both Wi-Fi 6 and BLE 5.3 capabilities are required within a single small footprint. Consider the integrated nRF5340 processing power for edge computing tasks alongside network connectivity. Evaluate the need for dual-band support versus single-band alternatives based on local interference environments and throughput requirements.

RF Transceiver Modules And Modems Part Context

This model belongs to Minewsemi's line of IoT connectivity modules leveraging Nordic Semiconductor silicon. The ME16WS03 series combines high-performance networking with low power consumption. It targets developers seeking certified solutions for complex wireless protocols without managing separate chip components.

RF Transceiver Modules And Modems Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing designs if considering alternative vendors or newer generations from the same manufacturer.
