MIC5233-3.3YM5-TRVAO

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

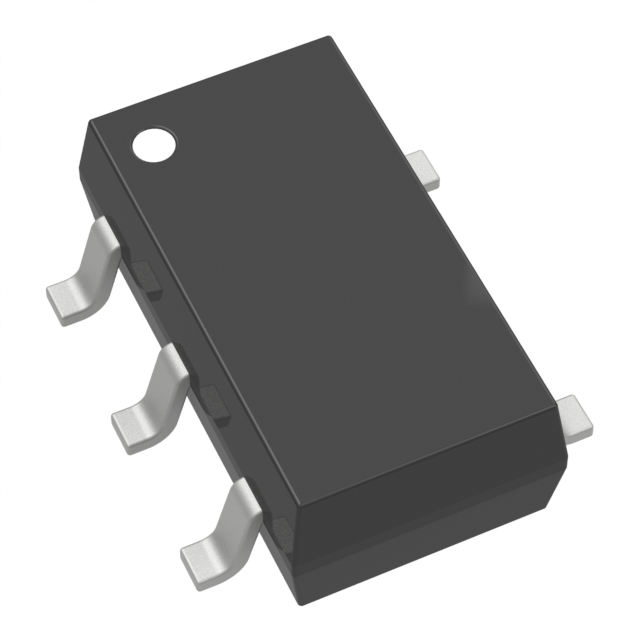

The MIC5233-3.3YM5-TRVAO is a 100 mA low dropout regulator with a fixed 3.3V output, housed in a 5-lead SOT-23 package. It supports an input voltage range of 2.3V to 36V and delivers an output accuracy of ±2.0%. The device features ultra-low ground current of 18 µA at full load and near-zero shutdown current of 0.1 µA. It includes reverse battery protection, thermal shutdown, and current limit protection. Automotive qualified under AEC-Q100 standards.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• AEC-Q100 automotive qualification for reliability in vehicle environments
• Ultra-low ground current consumption for extended battery life
• Reverse battery and leakage protection for system safety
• Compatible with ceramic or tantalum output capacitors

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• Keep-alive supply in notebook and portable computers
• USB power supply circuits
• Logic supply for high-voltage batteries
• Automotive electronics systems
• Battery-powered systems

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix 'VAO' confirms AEC-Q100 automotive qualification status. Ensure the ordering code matches the required 5-lead SOT-23 package configuration. Confirm that the fixed 3.3V output specification aligns with the target circuit design requirements before finalizing procurement.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when high input voltage tolerance up to 36V is required alongside low quiescent current. The fixed 3.3V output eliminates external resistor networks needed for adjustable versions. Verify that the 100mA continuous current rating meets the maximum load demand of the application.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the MIC5233 family of high-input voltage, low-IQ LDO regulators. The 'M5' designation indicates the 5-lead SOT-23 package type. The 'VAO' suffix specifically denotes AEC-Q100 automotive qualification and PPAP capability, distinguishing it from standard commercial grade variants within the same series.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

MIC5233-3.3YM5-TR (Standard Commercial Grade)

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ

What is the typical ground current during operation?

The typical ground current is 18 µA at a 100 mA output load.

Does this regulator require a minimum load for stability?

No, the MIC5233 remains stable and in regulation with no load.

What types of output capacitors are supported?

It is stable with either ceramic or tantalum capacitors, requiring a minimum of 2.2 µF.
