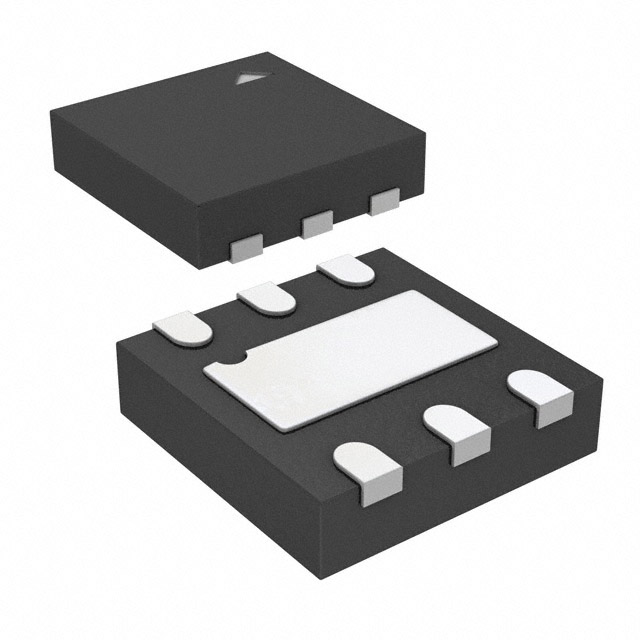

MIC5393-SGYMX-TR

$0.21

Description：IC REG LINEAR 1.8V/3.3V 6-XTDFN
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)

SKU:52868db6fb27 Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Brand: Microchip Technology

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MIC5393-SGYMX-TR is listed in the Voltage Regulators - Linear, Low Drop Out (LDO) Regulators range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is IC REG LINEAR 1.8V/3.3V 6-XTDFN. Review the specifications below when checking this part for your BOM.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators specifications for MIC5393-SGYMX-TR

Description：IC REG LINEAR 1.8V/3.3V 6-XTDFN
Series：-
Mfr：Microchip Technology
Package：Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)
Output Configuration：Positive
Output Type：Fixed
Number of Regulators：2
Voltage - Input (Max)：5.5V
Voltage - Output (Min/Fixed)：1.8V, 3.3V
Voltage - Output (Max)：-
Voltage Dropout (Max)：0.31V @ 150mA, 0.31V @ 150mA
Current - Output：150mA, 150mA
Current - Quiescent (Iq)：45 µA
Current - Supply (Max)：85 µA
PSRR：60dB (1kHz)
Control Features：Enable
Protection Features：Over Current, Over Temperature
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount
Package / Case：6-XFDFN Exposed Pad
Supplier Device Package：6-XTDFN (1.2x1.2)
Grade：-
Qualification：-

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators datasheet and documents for MIC5393-SGYMX-TR

MIC5393-SGYMX-TR

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The MIC5393-SGYMX-TR is a dual low-dropout linear regulator featuring two independent 150mA outputs in a 6-pin, 1.2mm × 1.2mm Extra Thin DFN package. It operates with an input voltage range of 2.5V to 5.5V and provides fixed output voltages of 3.3V and 1.8V. The device includes internal auto-discharge circuits, achieving a quiescent current of 32µA per LDO. It offers high power supply rejection ratio (PSRR) exceeding 60dB at 1kHz and maintains stability with 1µF ceramic capacitors.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

Integrates two independent 150mA LDOs within a compact leadless DFN footprint.
Features internal auto-discharge circuitry for rapid output capacitor discharge upon shutdown.
Provides high power supply ripple rejection to eliminate the need for additional bypass capacitance.
Includes independent active-high enable pins for flexible power management control.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

Mobile phone camera modules
Image sensor power supplies
Audio codec power applications
Portable electronics such as PDAs and MP3 players

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the specific suffix 'SGYMX' confirms the 3.3V/1.8V fixed output configuration and the Extra Thin DFN package type. Confirm the 'TR' designation indicates tape and reel packaging. Ensure compatibility with the required 1µF ceramic output capacitors for stability. Check for RoHS compliance status if environmental regulations apply to the target assembly process.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

Select this component when space constraints require a 1.2mm × 1.2mm dual LDO solution. Choose the MIC5393 variant specifically over the MIC5392 if automatic output discharge functionality is required for system power-down sequences. Ensure the application demands fixed 3.3V and 1.8V rails to match the SGYMX ordering code.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the MIC5392/3 family of high-performance dual LDOs designed for portable electronics. The MIC5393 distinguishes itself from the MIC5392 by including internal auto-discharge resistors. Both variants share identical electrical characteristics regarding dropout voltage, PSRR, and thermal performance within the same small form factor packages.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

MIC5393-SGYMT-TR: Identical electrical specifications but utilizes the standard 1.2mm × 1.2mm Thin DFN package instead of the Extra Thin variant. Verify mechanical height constraints before substituting.
