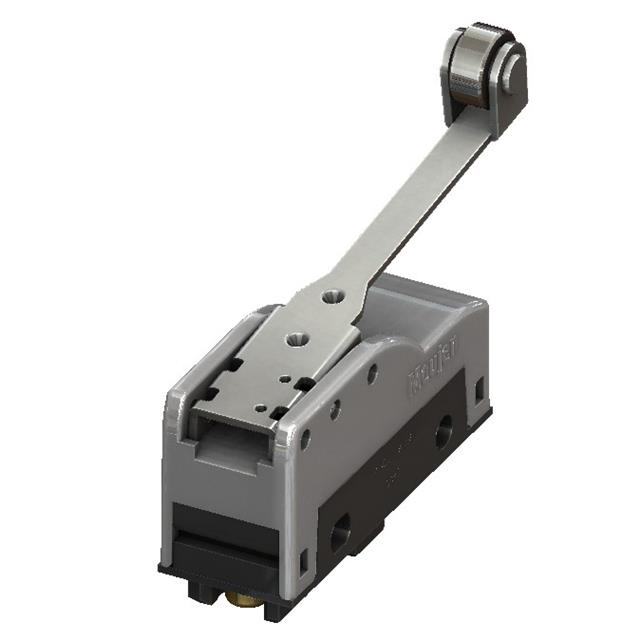

MJ3-511111

MJ3-511111 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SWITCH SNAP ACTION SPDT 5A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJ3-511111

• Description：SWITCH SNAP ACTION SPDT 5A 250V
• Series：MJ3
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 400mA
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP40
• Features：-
• Operating Force：76gf
• Release Force：58gf
• Operating Position：-
• Pretravel：0.303" (7.7mm)
• Differential Travel：0.035" (0.9mm)
• Overtravel：0.350" (8.9mm)
• Operating Temperature：-25°C ~ 80°C
• Voltage Rating - DC：250 V

Limit Switches datasheet and documents for MJ3-511111
