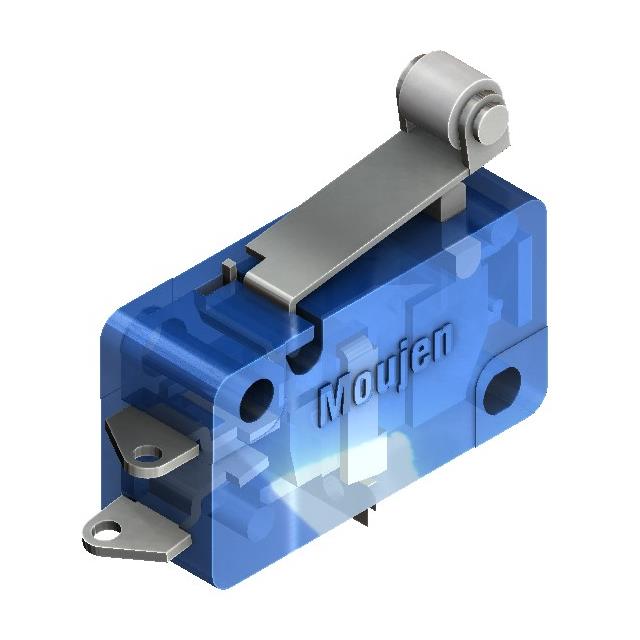

MJG--MVS-3404--T3

MJG–MVS-3404–T3 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SPDT Positive Open Mini Switch. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MJG–MVS-3404–T3

• Description：SPDT Positive Open Mini Switch
• Series：MVS
• Mfr：Moujen
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：6A (AC), 0.5A (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Solder Lug
• Ingress Protection：IP40
• Features：Positive Opening
• Operating Force：220gf
• Release Force：50gf
• Pretravel：0.051" (1.3mm)
• Differential Travel：0.006" (0.15mm)
• Overtravel：0.051" (1.3mm)
• Operating Temperature：-40°C ~ 85°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MJG–MVS-3404–T3
