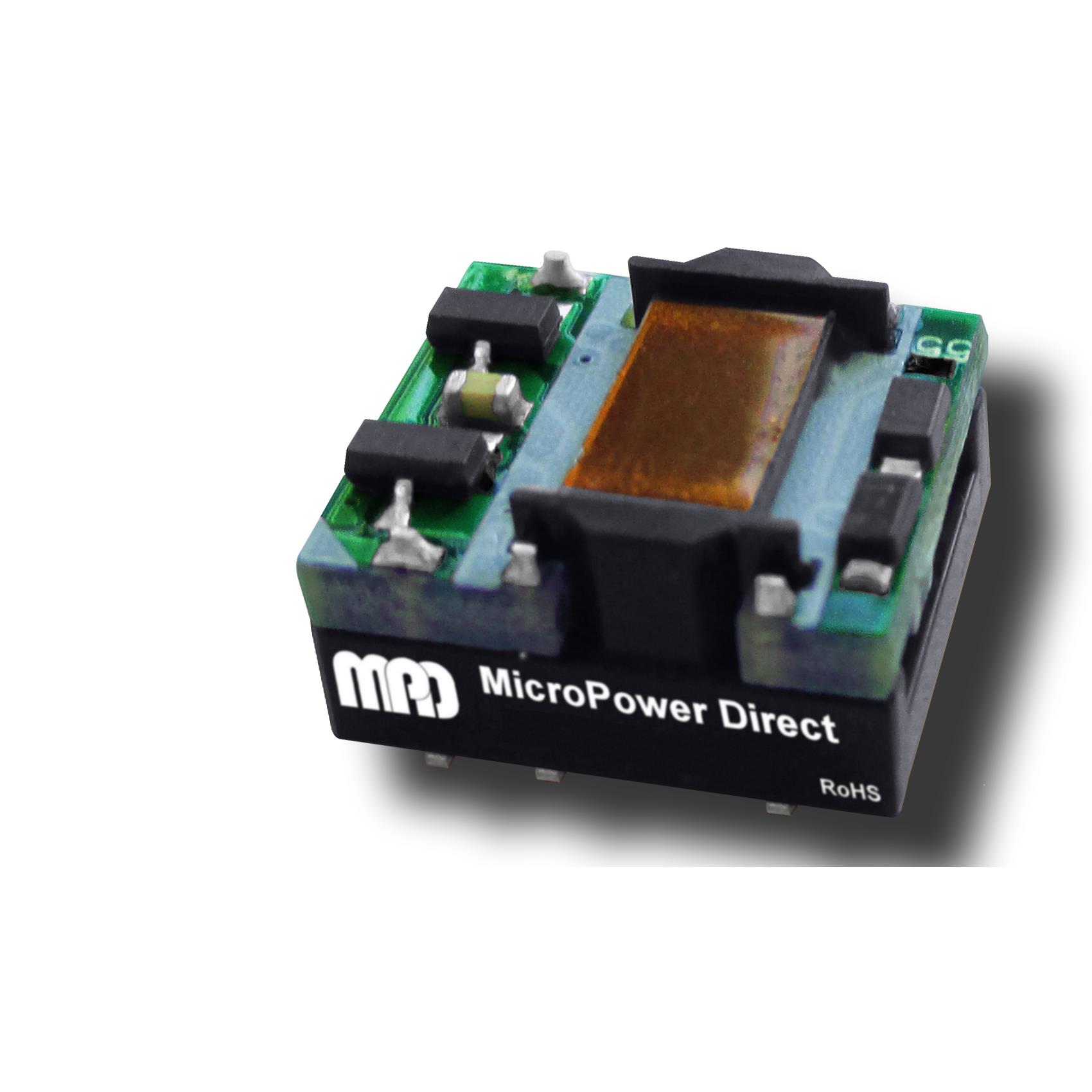

ML103S-03SRI

ML103S-03SRI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,1W,3.3VIN,3.3VOUT,4.2 KVIS. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ML103S-03SRI

• Description：DC/DC,1W,3.3VIN,3.3VOUT,4.2 KVIS
• Series：ML100SRI (1W)
• Mfr：MicroPower Direct
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：2.97V
• Voltage - Input (Max)：3.63V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：303mA
• Power (Watts)：1 W
• Voltage - Isolation：4.2 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：73%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module, 5 Leads
• Size / Dimension：0.50" L x 0.43" W x 0.27" H (12.7mm x 11.0mm x 6.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cURus
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for ML103S-03SRI
