Product Detailed Parameters
- Description：IC GATE DRVR HALF-BRIDGE 32QFN
- Series：-
- Mfr：Melexis Technologies NV
- Package：Tape & Reel (TR)
- Driven Configuration：Half-Bridge
- Channel Type：3-Phase
- Number of Drivers：6
- Gate Type：MOSFET (N-Channel)
- Voltage - Supply：4.5V ~ 28V
- Logic Voltage - VIL, VIH：0.8V, 1.5V
- Current - Peak Output (Source, Sink)：1.4A, 1.6A
- Input Type：-
- Rise / Fall Time (Typ)：7ns, 7ns
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Surface Mount

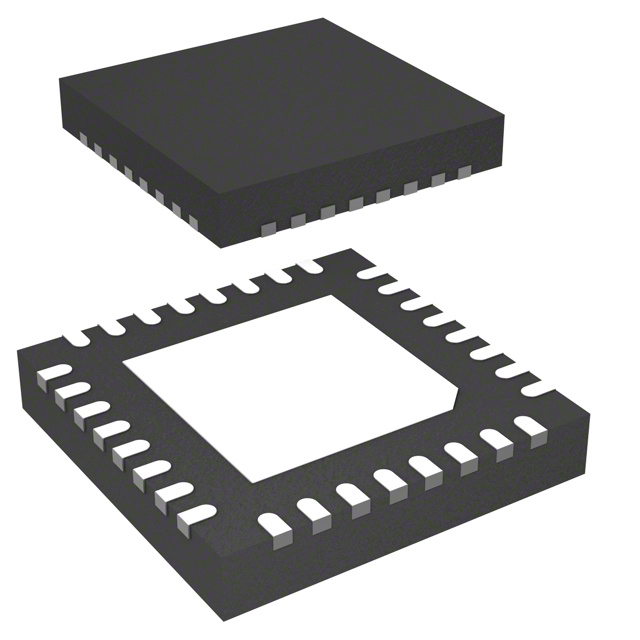

- Package / Case：32-VFQFN Exposed Pad
- Supplier Device Package：32-QFN (5x5)
- Grade：Automotive
- Qualification：AEC-Q100
- High Side Voltage - Max (Bootstrap)：-
Download product information
Overview
The MLX83203KLW-DBA-000-RE is an automotive-grade three-phase BLDC pre-driver IC designed for high-power applications. It integrates a current sense amplifier and interfaces with microcontrollers and six external N-FETs to drive brushless DC motors. The device supports a wide supply voltage range of 4.5V to 28V, including 45V load dump capability. It features a 1A gate drive strength, optional charge pump for low voltage operation, and EEPROM-based configuration. Operating temperature ranges from -40°C to 125°C.
Feature Summary
- Integrates programmable gain current sense amplifier for precise torque control
- Supports 100% PWM operation via trickle charge pump and bootstrap circuit
- Includes comprehensive protection against overvoltage, undervoltage, and overheating
- Configurable via internal EEPROM to optimize dead time and gain settings
Applications
- Automotive three-phase brushless DC motor drives
- High-power BLDC motor control systems
- Electric power steering actuators
- Thermal management fans in vehicles
Procurement Notes
Verify the specific suffix 'DBA' against official Melexis documentation to confirm pinout and feature set, as suffixes often denote package or configuration variations. Ensure compatibility with the target microcontroller's PWM interface and voltage levels. Confirm RoHS compliance status if required by assembly specifications. Cross-reference the part number with the manufacturer's latest datasheet to validate active status and recommended design-in guidelines.
Selection Notes
Select this component for applications requiring integrated current sensing and high gate drive current without external discrete drivers. It is suitable for designs needing EEPROM flexibility to adjust parameters like dead time and gain. Consider the QFN32 package size constraints and thermal requirements for high-power operations. Verify that the system voltage stays within the 4.5V to 28V operating range.
Part Context
This part belongs to the MLX83203 series of automotive pre-drivers. It is distinct from the MLX83100, which is intended for DC applications, and the MLX8120x series, which are embedded MCU controllers for sensorless BLDC applications. The MLX83203 focuses on driving external power FETs with integrated diagnostics and current sensing capabilities.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult Melexis technical support for direct replacements or cross-references.
