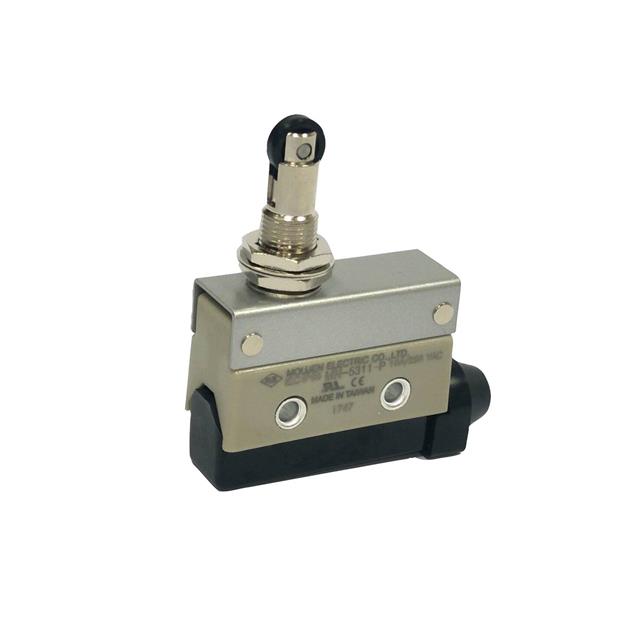

MN-5311-P

MN-5311-P is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SWITCH SNAP ACTION SPDT 10A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MN-5311-P

• Description：SWITCH SNAP ACTION SPDT 10A 250V
• Series：MN
• Mfr：Moujen
• Package：Retail Package
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：10A (AC), 500mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Roller Plunger
• Mounting Type：Chassis Mount
• Termination Style：Screw Terminal
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：Actuator Seal Boot
• Operating Force：600gf
• Release Force：100gf
• Operating Position：-
• Pretravel：0.079" (2.00mm)
• Differential Travel：0.031" (0.8mm)
• Overtravel：0.235" (6.0mm)
• Operating Temperature：-10°C ~ 80°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MN-5311-P
