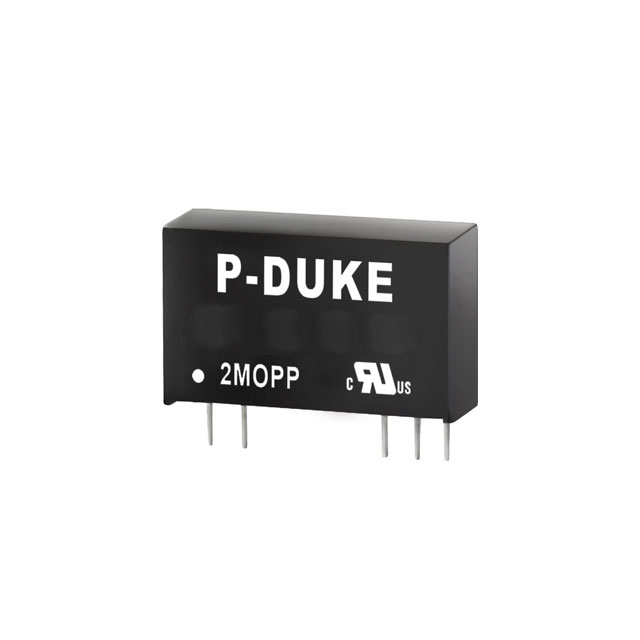

MPU01-05S05

MPU01-05S05 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 5V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPU01-05S05

• Description：DC DC CONVERTER 5V 1W
• Series：MPU01 (1W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA
• Power (Watts)：1 W
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial), Medical
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：82%
• Mounting Type：Through Hole
• Package / Case：9-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus
• Standard Number：60601-1; 62368-1
• Grade：-
• Qualification：-
