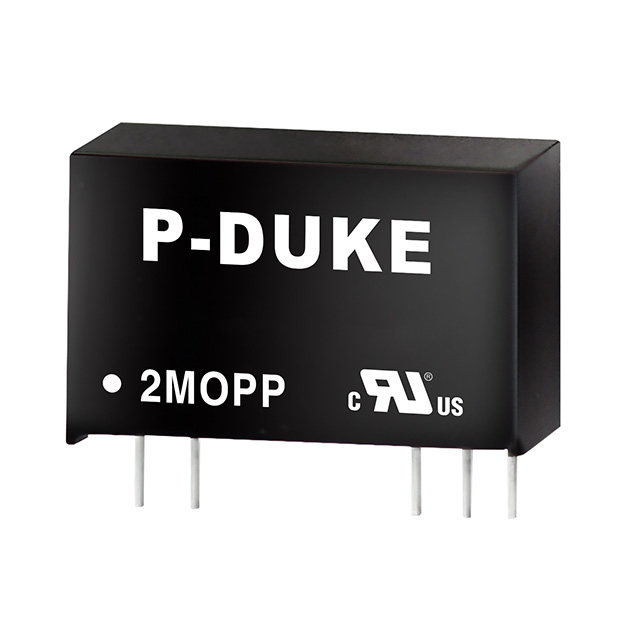

MPU02-12D12

MPU02-12D12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is ISOLATED / 2W / VOUT: 12. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MPU02-12D12

• Description：ISOLATED / 2W / VOUT: 12
• Series：MPU02 (2W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：9.6V
• Voltage - Input (Max)：14.4V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：83mA, 83mA
• Power (Watts)：1.992 W
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial), Medical
• Features：Adjustable Output
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：9-SIP Module, 5 Leads
• Size / Dimension：0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus, UKCA
• Standard Number：60601-1; 62368-1

DC DC Converters datasheet and documents for MPU02-12D12
