MPXHZ6130AC6U

Pressure Sensors Transducers Overview

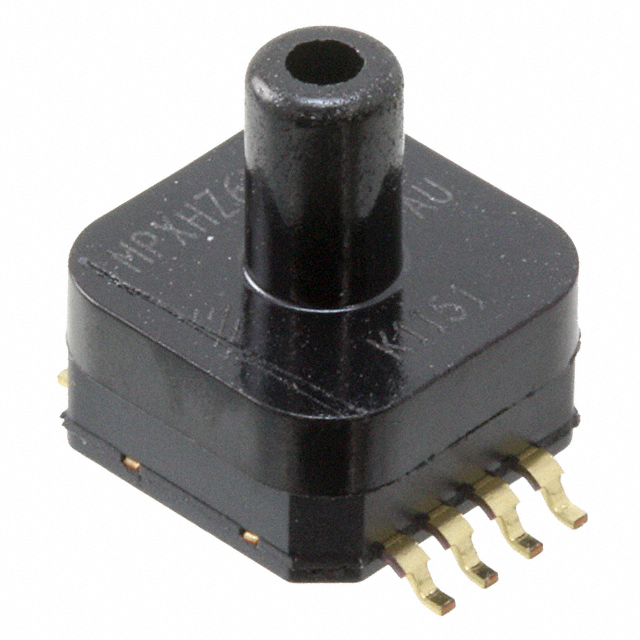

The MPXHZ6130AC6U is an absolute pressure sensor manufactured by NXP USA Inc. It features a measurement range of 2.18 to 18.85 PSI (15–130 kPa). The device provides an analog voltage output ranging from 0.2V to 4.7V, powered by a supply voltage of 4.75V to 5.25V. It utilizes an SOP-8 package with a port size of 1.27 mm pitch and dimensions of 8.26 mm x 8.26 mm x 4.8 mm. The sensor operates within a temperature range of -40°C to 125°C.

Pressure Sensors Transducers Feature Summary

• Provides accurate absolute pressure measurement across a defined range
• Features integrated temperature compensation for stable performance
• Delivers analog voltage output compatible with standard interfaces

Pressure Sensors Transducers Applications

• Industrial process control systems
• HVAC monitoring applications
• Medical equipment pressure sensing

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix codes against official NXP documentation to ensure correct package type and port configuration. Confirm that the required operating temperature range aligns with the specified -40°C to 125°C limit. Check for any recent lifecycle status updates or alternative part recommendations directly from the manufacturer before finalizing procurement plans.

Pressure Sensors Transducers Selection Notes

Select this component when absolute pressure measurement within the 15–130 kPa range is required. Ensure the system design accommodates the analog voltage output levels and the 5V supply requirement. Consider the SOP-8 package constraints and thermal management needs for the specified operating temperature range during integration.

Pressure Sensors Transducers Part Context

This part belongs to the MPXHZ series of absolute pressure sensors from NXP Semiconductors. These devices are designed for robust performance in various industrial and commercial applications requiring reliable pressure data acquisition.

Pressure Sensors Transducers Replacement Considerations

Consult official NXP substitution guides for verified cross-references. Generic equivalents may not match the specific accuracy or temperature compensation characteristics.
