MPXV5004G7U

Pressure Sensors Transducers Overview

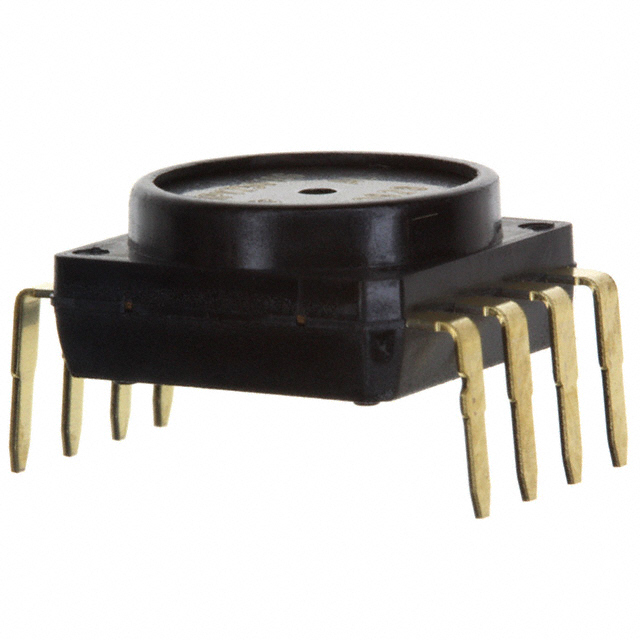

The MPXV5004G7U is a piezoresistive pressure sensor from the MPxx5004 series, manufactured by NXP USA Inc. It features an analog voltage output ranging from 1V to 4.9V and operates on a supply voltage of 4.75V to 5.25V. The device measures gauge pressure with a working range of 0.57 PSI (3.92 kPa) and a maximum pressure limit of 2.32 PSI (16 kPa). Housed in an 8-DIP module package, it supports through-hole mounting and PC pin termination. The sensor includes temperature compensation and functions within an operating temperature range of 0°C to 85°C.

Pressure Sensors Transducers Feature Summary

• Monolithic silicon piezoresistive transducer design
• Integrated temperature compensation for stability
• Analog voltage output signal

Pressure Sensors Transducers Applications

• Board-mounted pressure monitoring systems
• Industrial process control instrumentation
• HVAC differential pressure measurement

Pressure Sensors Transducers Procurement Notes

Verify component status as the MPXV5004G7U is listed as obsolete or discontinued by the manufacturer. Confirm availability of alternative sources or equivalent replacement parts if current stock is required for production. Ensure compatibility with existing board layouts and thermal requirements before procurement.

Pressure Sensors Transducers Selection Notes

Select this component for applications requiring low-pressure gauge measurement with analog interface capabilities. Consider the 8-DIP package constraints and through-hole mounting requirements during PCB design. Evaluate the specific pressure span against system operational limits to ensure accurate signal processing within the 1V to 4.9V output range.

Pressure Sensors Transducers Part Context

This part belongs to the MPXV5004 series of piezoresistive pressure sensors designed by Freescale/NXP. These devices are state-of-the-art monolithic silicon sensors intended for various industrial and consumer applications requiring precise pressure detection. The series offers integrated signal conditioning and temperature compensation.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. As the component is marked as obsolete, consult official NXP resources for recommended replacements or contact the manufacturer directly for legacy support options.
