MS50SF7-1N32AIR

RF Transceiver Modules And Modems Overview

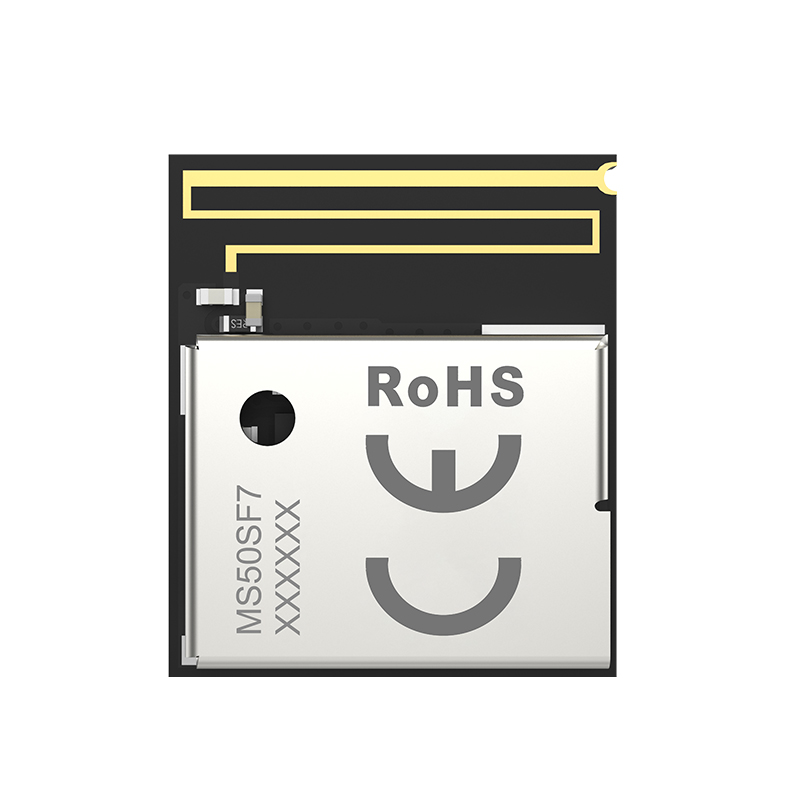

The Minewsemi MS50SF7-1N32AIR is a Bluetooth v5.4 transceiver module based on the Nordic nRF52832 SoC. It features an ultra-compact PCB antenna design with dimensions of 9.8x8.4x2mm. The module provides 512kB of flash memory and 64kB of RAM, supporting BLE, Thread, Zigbee, and NFC protocols. Key electrical parameters include -96dBm RX sensitivity, +4dBm TX power, 5.4mA receive current, and operation within a 1.7V to 3.6V supply range across -40°C to 85°C.

RF Transceiver Modules And Modems Feature Summary

• Supports multiple wireless protocols including Bluetooth Low Energy, Thread, and Zigbee
• Ultra-small form factor suitable for space-constrained designs
• Integrated PCB antenna for simplified layout

RF Transceiver Modules And Modems Applications

• Wearable health monitoring devices
• Smart home sensor nodes
• Industrial asset tracking tags

RF Transceiver Modules And Modems Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required firmware and regulatory certifications. Confirm that the surface-mount package matches the target PCB footprint. Check lead times as they may vary by distributor. Ensure ESD handling procedures are followed during assembly.

RF Transceiver Modules And Modems Selection Notes

Select this module when a compact solution supporting both BLE and IEEE 802.15.4 standards is required. The nRF52832 processor offers sufficient computational power for complex protocol stacks. Consider the integrated antenna if board space is limited compared to external antenna options.

RF Transceiver Modules And Modems Part Context

This component belongs to the Minewsemi Mini nRF52832 series. It utilizes the Nordic Semiconductor nRF52832 system-on-chip. The module is designed for high-performance wireless connectivity in small form factors. It serves as a complete RF solution integrating the baseband processor and radio.

RF Transceiver Modules And Modems Replacement Considerations

Direct substitutes include other modules using the nRF52832 chip such as the MS50SFA-2Y32AI. Verify pinout compatibility and firmware support before replacement.
