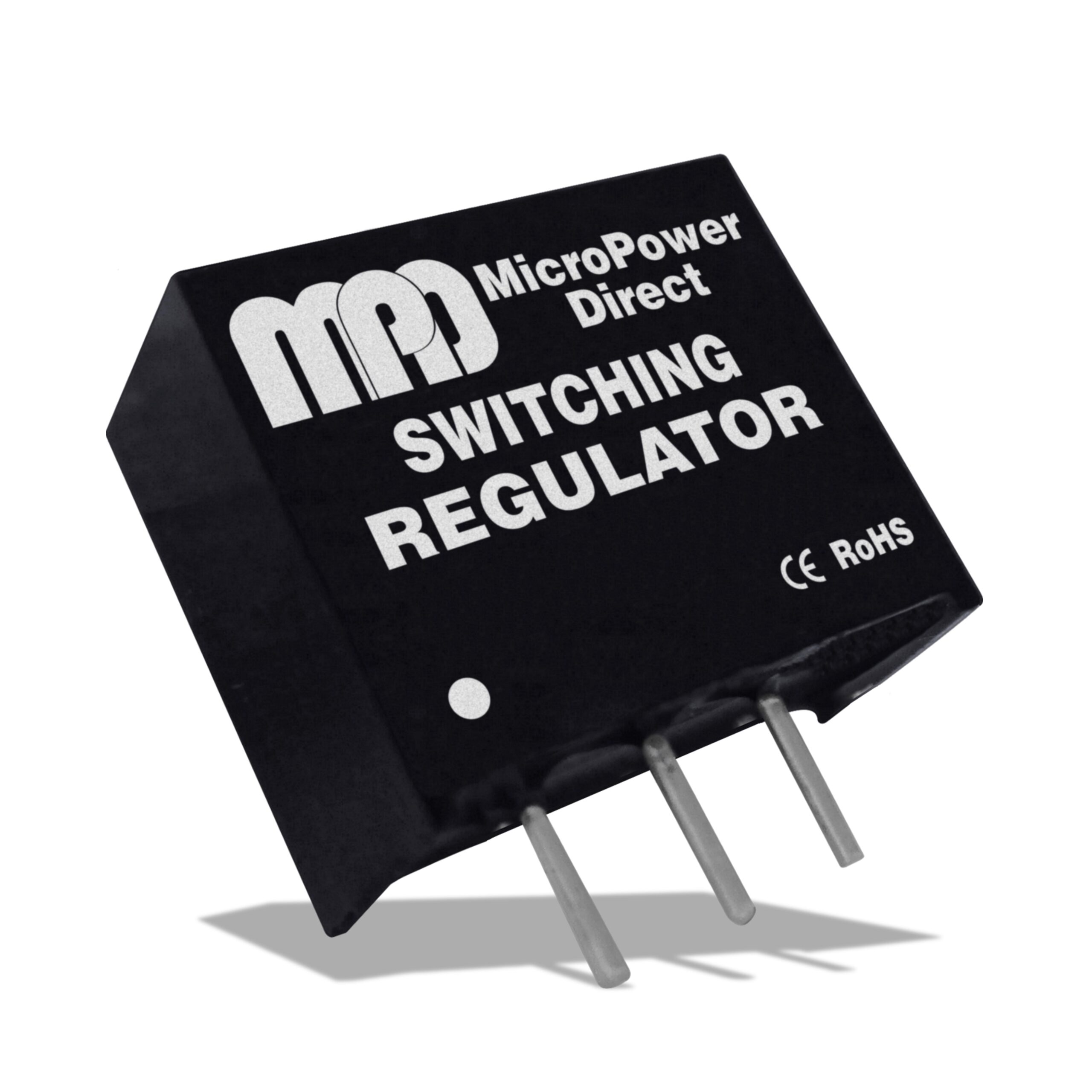

MSR7805-15M

MSR7805-15M is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,500MA,34V IN,15V OUT,NONIS. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MSR7805-15M

• Description：DC/DC,500MA,34V IN,15V OUT,NONIS
• Series：MSR7805M
• Mfr：MicroPower Direct
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：-
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：34V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA
• Power (Watts)：15 W
• Voltage - Isolation：-
• Applications：Industrial, ITE (Commercial)
• Features：Proportional Output, SCP
• Operating Temperature：-40°C ~ 93°C
• Efficiency：-
• Mounting Type：Through Hole
• Package / Case：-
• Size / Dimension：0.46" L x 0.40" W x 0.30" H (11.7mm x 10.2mm x 7.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE, UKCA
• Standard Number：-
• Grade：-
• Qualification：-
