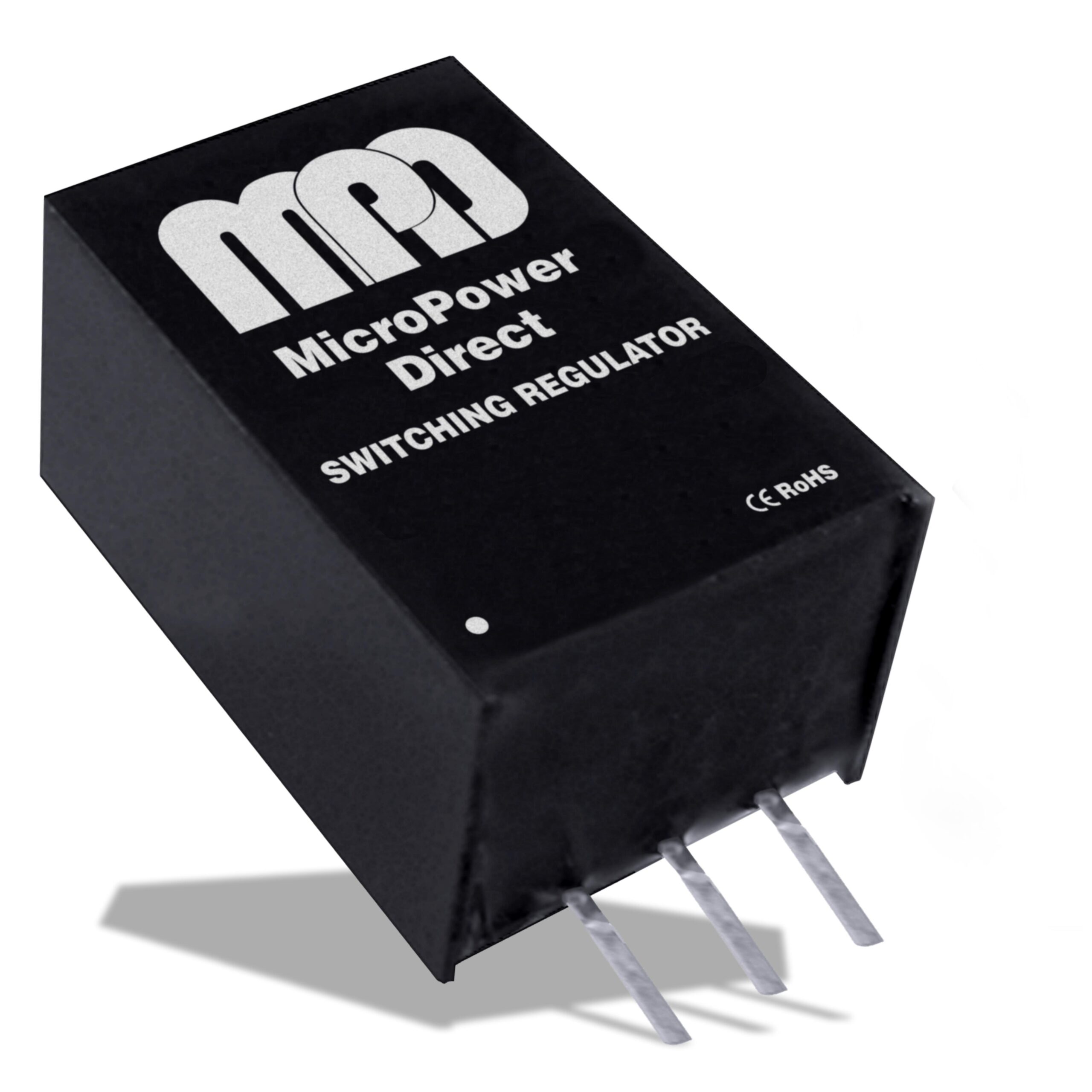

MSR7820-09CW

MSR7820-09CW is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,2000MA,36VIN,9VOUT,NONISO. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MSR7820-09CW

• Description：DC/DC,2000MA,36VIN,9VOUT,NONISO
• Series：MSR7820W
• Mfr：MicroPower Direct
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：13V
• Voltage - Input (Max)：36V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A
• Power (Watts)：9 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：96%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MSR7820-09CW
