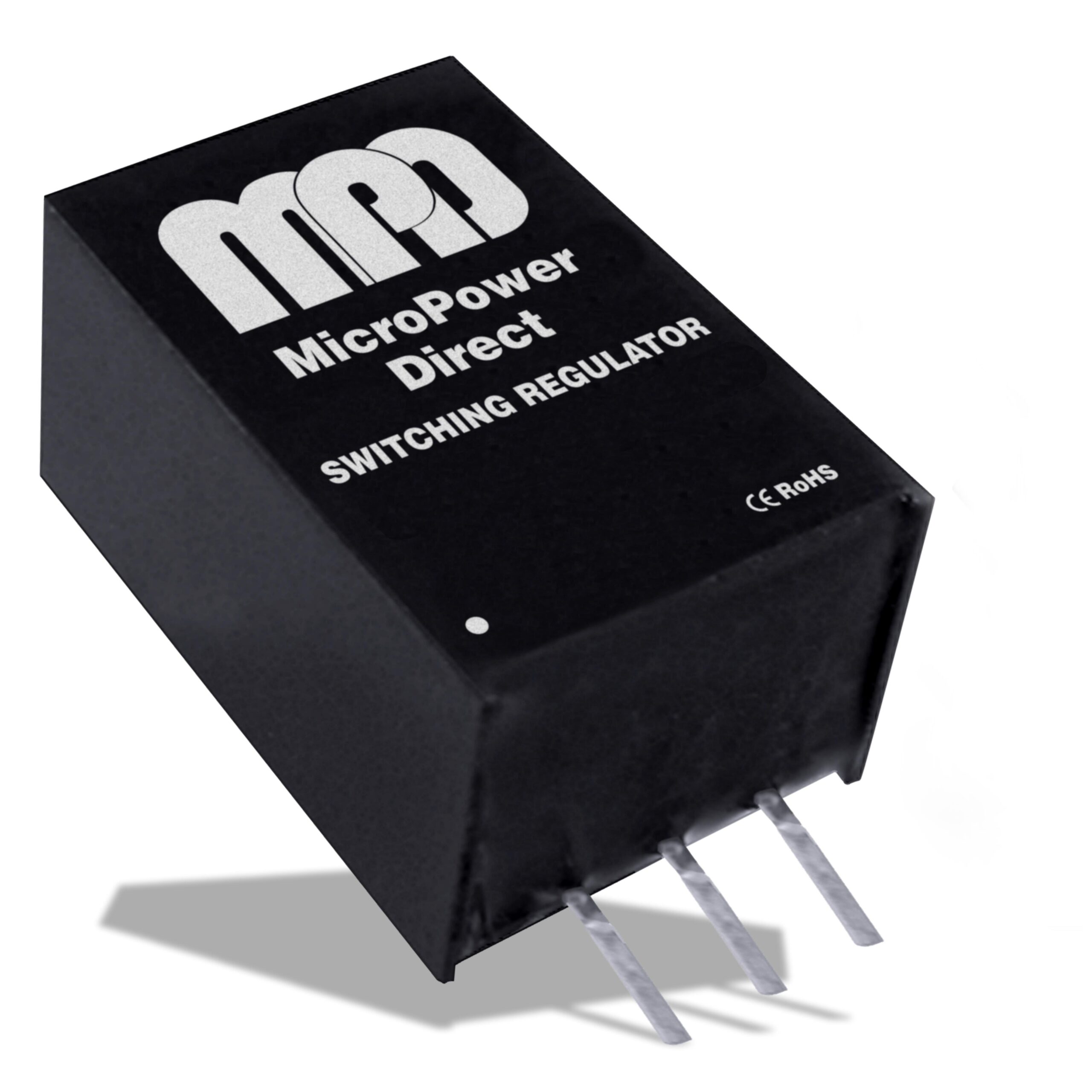

MSR7820-12CW

MSR7820-12CW is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC CONVERTER,2000MA,36V IN,12. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MSR7820-12CW

• Description：DC/DC CONVERTER,2000MA,36V IN,12
• Series：MSR7820CW
• Mfr：MicroPower Direct
• Package：Box
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：-
• Voltage - Input (Max)：-
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2A
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：Industrial, ITE (Commercial)
• Features：Regulated Output, SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：96%
• Mounting Type：-
• Package / Case：-
• Size / Dimension：0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MSR7820-12CW
