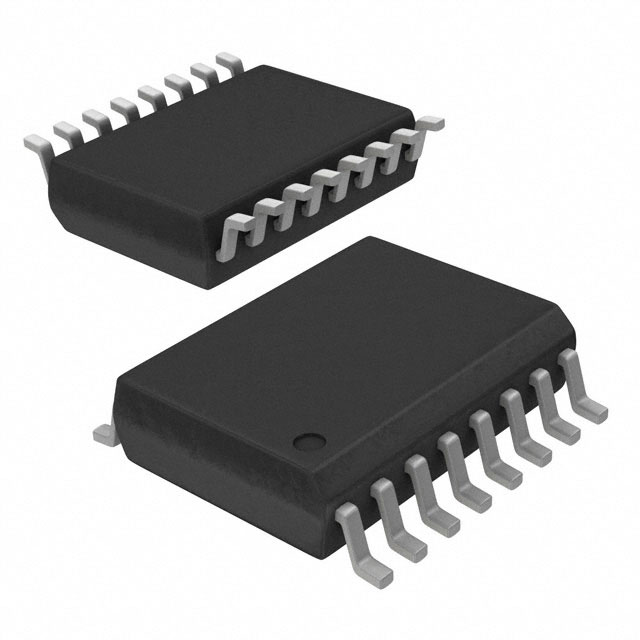

MT25QL128ABB8ESF-CSIT

Description：IC FLASH 128MBIT SPI/QUAD 16SOP2
Series：-
Mfr：Micron Technology Inc.
Package：Tray

SKU:7d82cf6a511b Category: Memory IC Brand: Micron Technology Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MT25QL128ABB8ESF-CSIT is listed in the Memory IC range at ChipApex. The manufacturer field lists Micron Technology Inc.. Its product description is IC FLASH 128MBIT SPI/QUAD 16SOP2. Review the specifications below when checking this part for your BOM.

Memory IC specifications for MT25QL128ABB8ESF-CSIT

Description：IC FLASH 128MBIT SPI/QUAD 16SOP2
Series：-
Mfr：Micron Technology Inc.
Package：Tray
Memory Type：Non-Volatile
Memory Format：FLASH
Technology：FLASH - NOR
Memory Size：128Mbit
Memory Organization：16M x 8
Memory Interface：SPI - Quad I/O
Clock Frequency：133 MHz
Write Cycle Time - Word, Page：1.8ms
Voltage - Supply：2.7V ~ 3.6V
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Package / Case：16-SOIC (0.295", 7.50mm Width)
Supplier Device Package：16-SOP2
Access Time：5 ns
Grade：-
Qualification：-

Memory IC datasheet and documents for MT25QL128ABB8ESF-CSIT

MT25QL128ABB8ESF-CSIT

Memory IC Overview

The MT25QL128ABB8ESF-CSIT is a 128 Mbit (16 MB) Serial NOR Flash memory device manufactured by Micron Technology. It features a Quad I/O SPI interface with a maximum clock frequency of 133 MHz. The device operates within a supply voltage range of 2.7 V to 3.6 V and supports Single, Double, and Quad I/O protocols. It is housed in a 16-pin SOP2 package and is rated for an industrial operating temperature range from -40°C to +85°C.

Memory IC Feature Summary

Supports high-speed data transfer via Quad I/O commands at frequencies up to 133 MHz
Enables Execute-In-Place (XIP) operation for direct code execution from the flash memory
Includes hardware write protection mechanisms and non-volatile configuration settings

Memory IC Applications

Embedded systems requiring boot code storage
Industrial control applications needing reliable non-volatile memory
Consumer electronics utilizing firmware storage

Memory IC Procurement Notes

Verify the specific suffix CSIT against official Micron documentation to confirm package type and moisture sensitivity level. Ensure the design accommodates the 2.7 V to 3.6 V supply voltage requirements. Confirm that the 16-SOP2 package dimensions match the PCB footprint specifications before finalizing procurement orders.

Memory IC Selection Notes

Select this component when a 128 Mbit capacity is required with support for high-speed Quad I/O operations. It is suitable for designs needing XIP capabilities and robust write protection features. Ensure the system voltage aligns with the 2.7 V to 3.6 V operating range and that the 16-pin SOP2 package fits the mechanical constraints.

Memory IC Part Context

This part belongs to the Micron MT25QL family of Serial NOR Flash memories. These devices are designed for applications requiring fast read speeds and flexible programming options. The MT25QL series supports various SPI modes, including Single, Double, and Quad I/O, making it versatile for different performance requirements in embedded storage solutions.
