MV8305

LED Indication - Discrete Overview

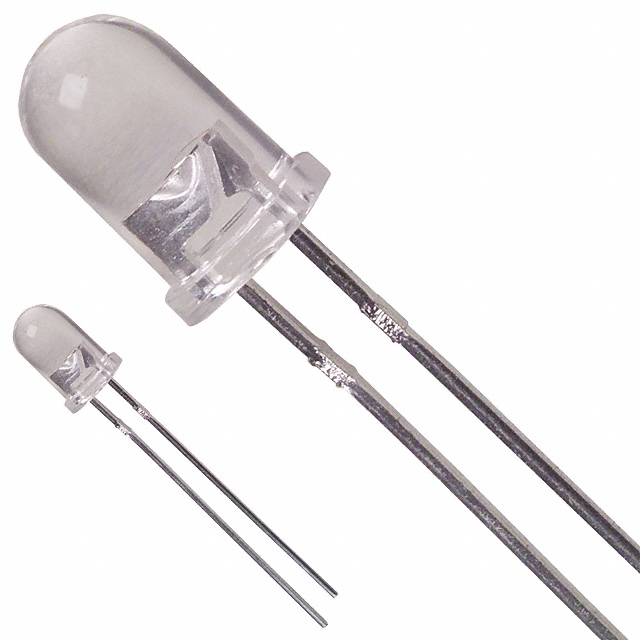

The MV8305 is a discrete yellow LED from onsemi, classified under LED Indication. It features a T-1 3/4 (5mm) round lens with a clear colorless dome style. The component utilizes a radial through-hole mounting configuration and operates at a forward voltage of 2.1V. The physical height of the device is specified as 8.89mm. This part is currently designated as obsolete and is no longer in active production by the manufacturer.

LED Indication - Discrete Feature Summary

• Yellow illumination output with a standard configuration
• Clear colorless dome-style lens for visual indication
• Radial through-hole package design

LED Indication - Discrete Applications

• General purpose panel status indication
• Equipment power state signaling
• Discrete component replacement in legacy designs

LED Indication - Discrete Procurement Notes

Verify component obsolescence status prior to integration. As the MV8305 is marked obsolete, confirm availability through authorized distributors or secondary markets. Ensure that any sourced units meet original manufacturing specifications. Validate mechanical fit and electrical parameters against current design requirements before finalizing procurement decisions.

LED Indication - Discrete Selection Notes

Consider alternative yellow LEDs with compatible T-1 3/4 form factors if long-term supply assurance is required. Evaluate forward voltage and luminous intensity specifications to ensure compatibility with existing drive circuits. Review mechanical dimensions, particularly the 8.89mm height, to verify clearance within the target enclosure or panel assembly constraints.

LED Indication - Discrete Part Context

The MV8305 belongs to the broader category of discrete LED indicators manufactured by onsemi. These components are designed for visual signaling applications where distinct color coding is necessary. The specific model represents a standard through-hole variant commonly used in industrial and consumer electronics for basic status feedback.

LED Indication - Discrete Replacement Considerations

DigiKey lists available substitutes for this obsolete part number. Verify that any replacement maintains the same T-1 3/4 package, yellow wavelength, and radial pin configuration to ensure direct interchangeability without PCB redesign.
