MV8316

LED Indication - Discrete Overview

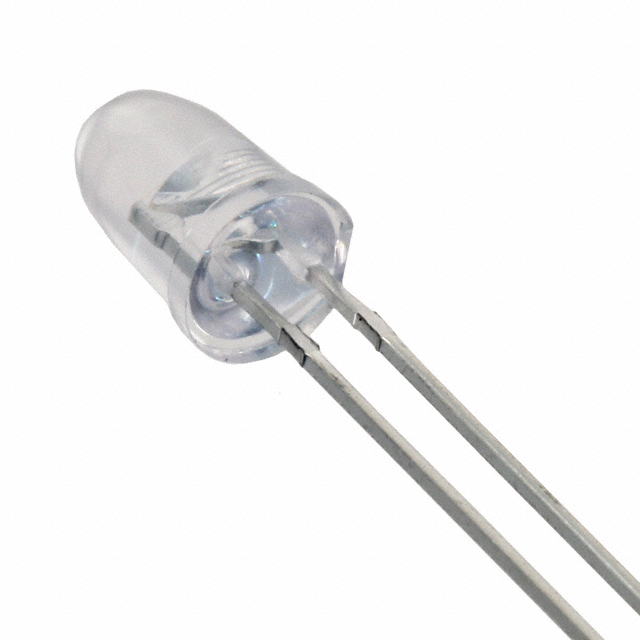

The MV8316 is a super bright yellow LED lamp manufactured by Everlight Electronics Co Ltd. It utilizes an AlInGaP semiconductor material to emit light at a peak wavelength of 590 nm. The component features a water-clear epoxy lens encapsulation in a T-1 3/4 (5mm) radial package with a flat cathode indicator. Designed for through-hole mounting, it delivers a typical forward voltage of 2.1V at a test current of 20mA. The device provides a luminous intensity of 3500 mcd and maintains a narrow viewing angle of 12 degrees for concentrated light output.

LED Indication - Discrete Feature Summary

• Emits super bright yellow light using AlInGaP technology
• Features a water-clear epoxy lens for high transparency
• Provides a narrow 12-degree viewing angle for focused illumination

LED Indication - Discrete Applications

• Outdoor indicator lighting applications
• General purpose status indication
• High-brightness visual signaling systems

LED Indication - Discrete Procurement Notes

Verify the manufacturer designation carefully, as the MV8316 part number is historically associated with ON Semiconductor. Confirm that the supplier explicitly sources this specific LED from Everlight Electronics Co Ltd. Ensure the datasheet provided matches the AlInGaP yellow emission specifications and T-1 3/4 package dimensions described here. Cross-reference the pinout and cathode flat orientation to prevent installation errors during assembly.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity yellow indicator is required in a standard 5mm through-hole footprint. The narrow 12-degree beam angle makes it suitable for applications needing directed visibility rather than wide-area diffusion. Consider the 2.1V forward voltage drop for power supply design. Verify thermal management requirements if operating near maximum ratings, although standard through-hole mounting typically suffices for indicator duties.

LED Indication - Discrete Part Context

This component belongs to the family of super bright T-1 3/4 LED lamps designed for high visibility. The T-1 3/4 form factor is a popular industry standard for robust mechanical mounting and reliable electrical connections. These LEDs are engineered for solid-state reliability, offering long operational lifespans compared to traditional incandescent indicators. The clear lens packaging ensures minimal light absorption within the housing.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
