MXTO6FI32K768B

Crystals Overview

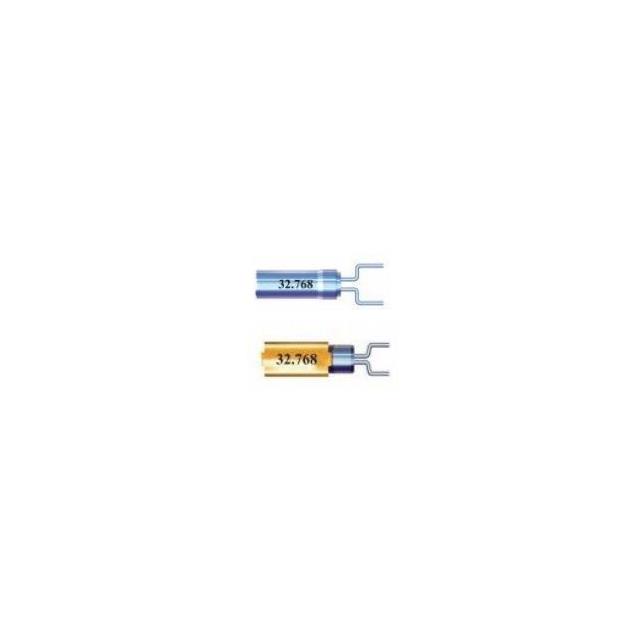

The Meritek MXTO6FI32K768B is a surface-mount tuning fork crystal designed for precise timekeeping applications. It operates at a fundamental frequency of 32.768 kHz with a load capacitance of 6 pF and a frequency tolerance of ±20 ppm. The component features an equivalent series resistance (ESR) of 50 kOhms and is housed in a cylindrical package measuring 0.075 inches in diameter by 0.236 inches in height.

Crystals Feature Summary

• Surface-mount tuning fork design optimized for low power consumption
• Fundamental operating mode ensuring stable frequency generation
• Cylindrical SMD form factor suitable for compact PCB layouts

Crystals Applications

• Real-time clock circuits
• Timekeeping modules in consumer electronics
• Microcontroller system oscillators

Crystals Procurement Notes

Verify the specific load capacitance requirement against the target oscillator circuit design, as this component specifies 6 pF. Confirm that the 50 kOhm ESR aligns with the host controller's drive level specifications to prevent overdriving or failure to start. Ensure the surface-mount footprint matches the mechanical dimensions provided in the official datasheet.

Crystals Selection Notes

Select this component when a standard 32.768 kHz reference is required for battery-backed systems. The ±20 ppm tolerance suits general-purpose timing where high precision is not critical. Consider the 6 pF load capacitance compatibility with the MCU's internal capacitors before finalizing the design.

Crystals Part Context

This part belongs to the MXTO series of cylindrical surface-mount crystals from Meritek Electronics Corporation. These components are engineered for IoT, industrial controls, and infotainment systems requiring reliable timebase signals. The series supports various frequencies and load capacitances for diverse embedded applications.

Crystals Replacement Considerations

The MXTVBFI32K768 is a documented alternative within the same manufacturer's portfolio, offering similar 32.768 kHz performance with a 12.5 pF load capacitance. Verify mechanical footprint and electrical parameter compatibility before substitution.
